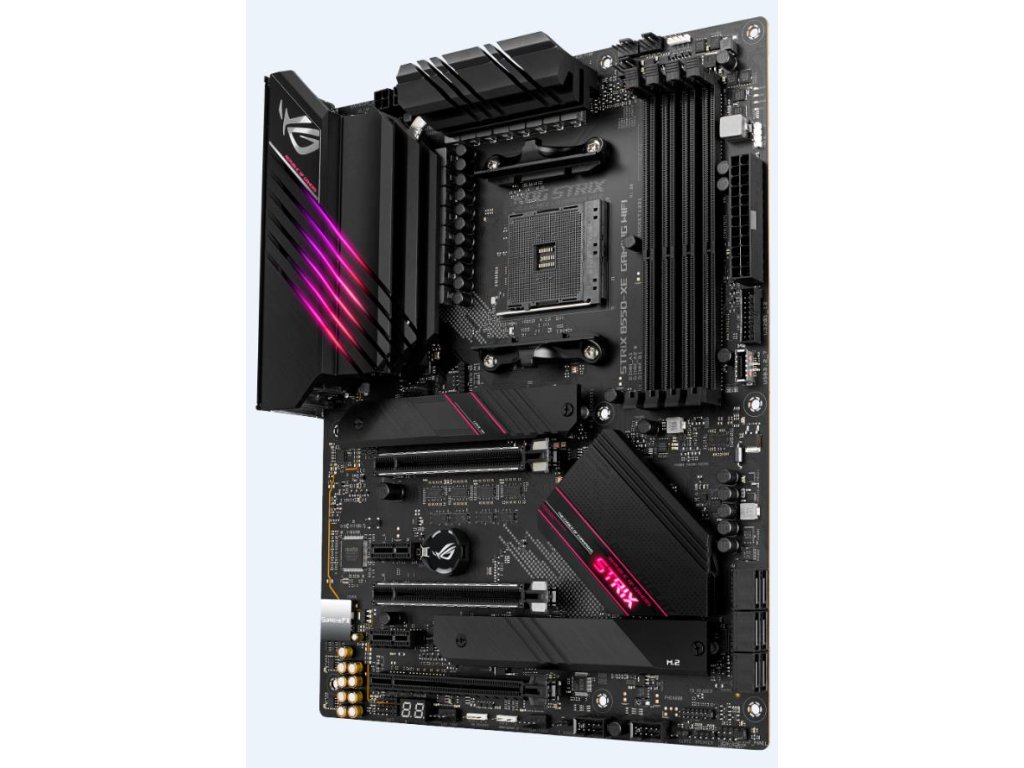

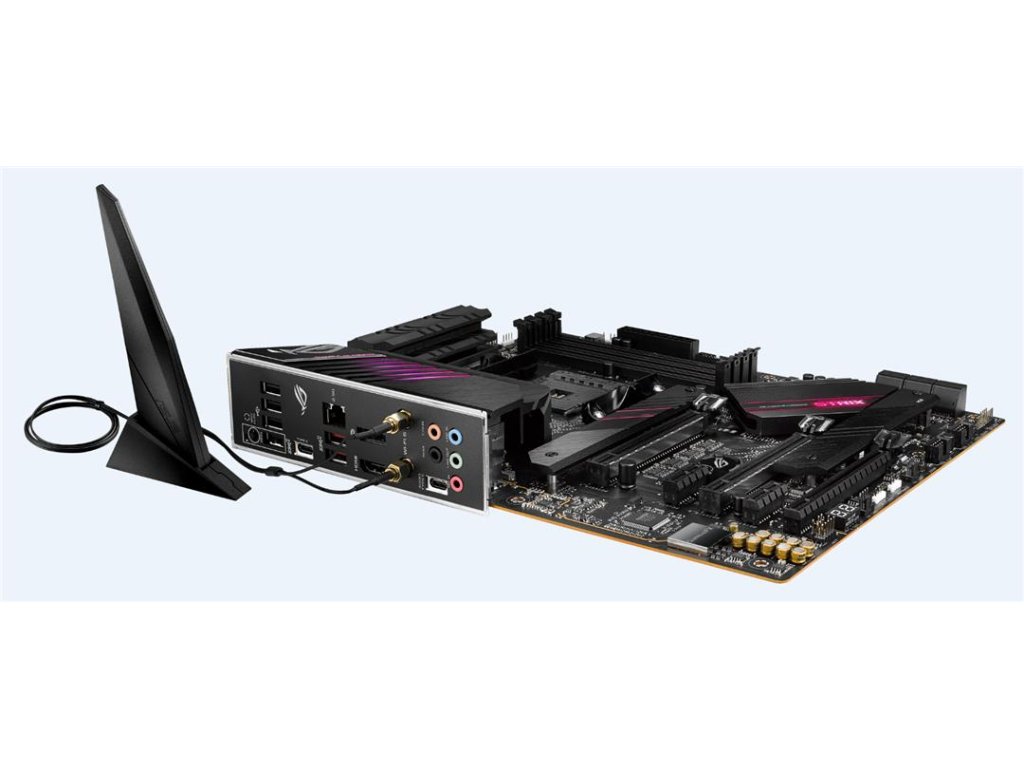

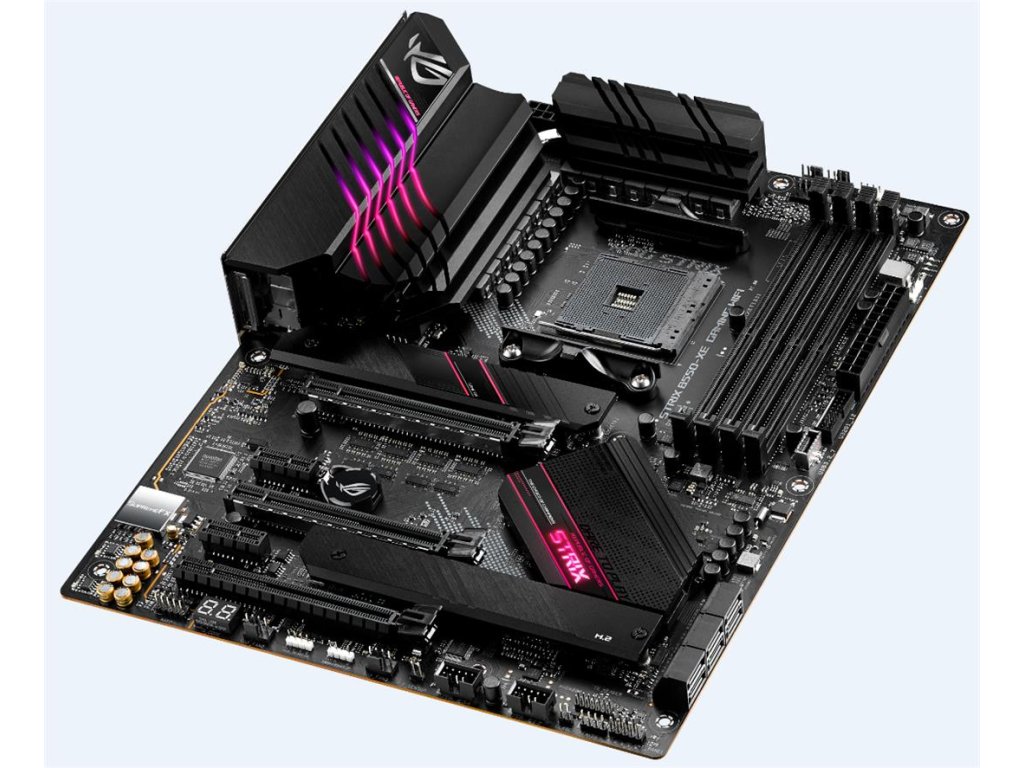

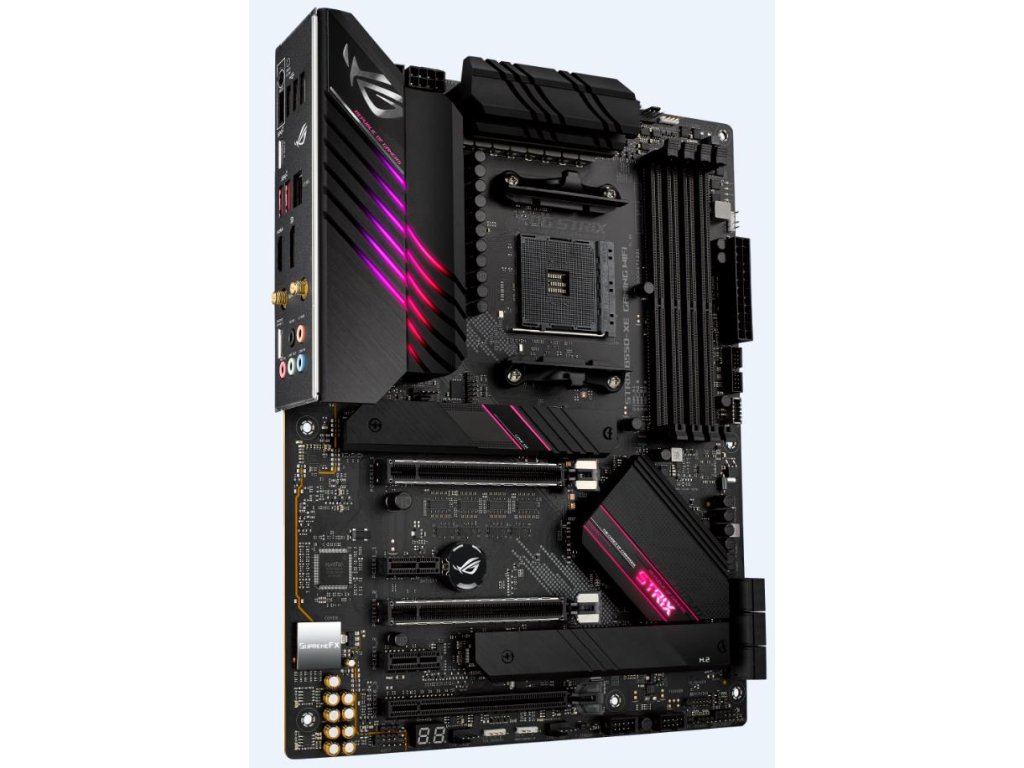

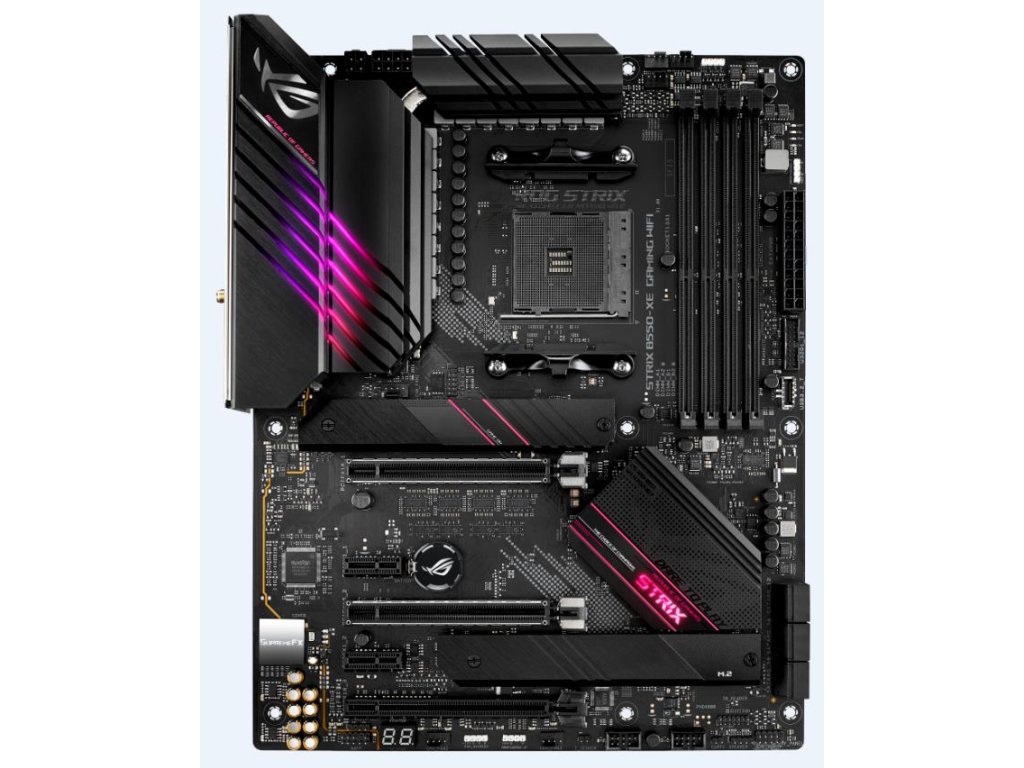

ASUS ROG STRIX B550-XE GAMING WIFI

Podrobný popis

Chipset: AMD B550
Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Patice procesoru: AM4
Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti:
* 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
* AMD Ryzen™ 4000 G-Series Desktop Processors - 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4
* OptiMem II
* Dual Channel Memory Architecture
* ECC Memory (ECC mode) support varies by CPU.
Grafická karta: Integrated Graphics Processor (na základě procesoru)
* 1x HDMI 2.1(4K@60HZ)
* 1x DisplayPort 1.2
Multi GPU:
* NVIDIA 2-Way SLI® Technology
* AMD 3-Way CrossFireX™ Technology
Zvuková karta:
* ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A
Síťová karta:
* Intel® I225-V 2.5Gb Ethernet (ASUS LANGuard)
* Intel® Wi-Fi 6 AX200
* Bluetooth 5.1
Rozšiřující sloty:
* 1x PCIe 3.0 x16 (x4 mode)
* 2x PCIe 3.0 x1
* 2x PCIe 4.0 x16 (x16 or dual x8)
RAID řadič: 0, 1, 10
SATA:
* 6x SATA 6Gb/s port(s)
M.2:
* 1x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
* 1x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
USB:
*
zadní USB porty ( celkem 8 )
* 3x USB 3.2 Gen 2 port(s)(2 x Type-A +1 x USB Type-C®)
* 1x USB 2.0 port(s)(1 x audio USB Type-C® )
* 4x USB 2.0 port(s)(4 x Type-A)
*
přední USB porty ( celkem 7 )
* 2x USB 3.2 Gen 1 port(s)
* 4x USB 2.0 port(s)
* 1x USB 3.2 Gen 2 front panel connector port(s)
Interní porty:
* 1x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
* 1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
* 1x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
* 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
* 1x Thunderbolt header(s)
* 1x Q-Code
* 1x CPU Fan connector(s)
* 1x CPU OPT Fan connector(s)
* 3x Chassis Fan connector(s)
* 1x AIO_PUMP connector
* 1x AAFP connector
* 2x Aura RGB Strip Header(s)
* 2x Addressable Gen 2 header(s)
* 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
* 6x SATA 6Gb/s connector(s)
* 1x 24-pin EATX Power connector(s)
* 1x 8-pin ATX 12V Power connector(s)
* 1x 4-pin ATX 12V Power connector(s)
* 1x System panel(s)
* 1x Thermal sensor connector(s)
* 1x Clear CMOS jumper(s)
Externí porty:
* 3x USB 3.2 Gen 2 (2 x Type-A+1 x USB Type-C®)
* 5x USB 2.0 (1 for audio USB Type-C®)
* 1x BIOS FlashBack™ Button(s)
* 1x Intel® I225-V 2.5Gb Ethernet
* 1x DisplayPort
* 1x HDMI
* 5x Audio jack(s)

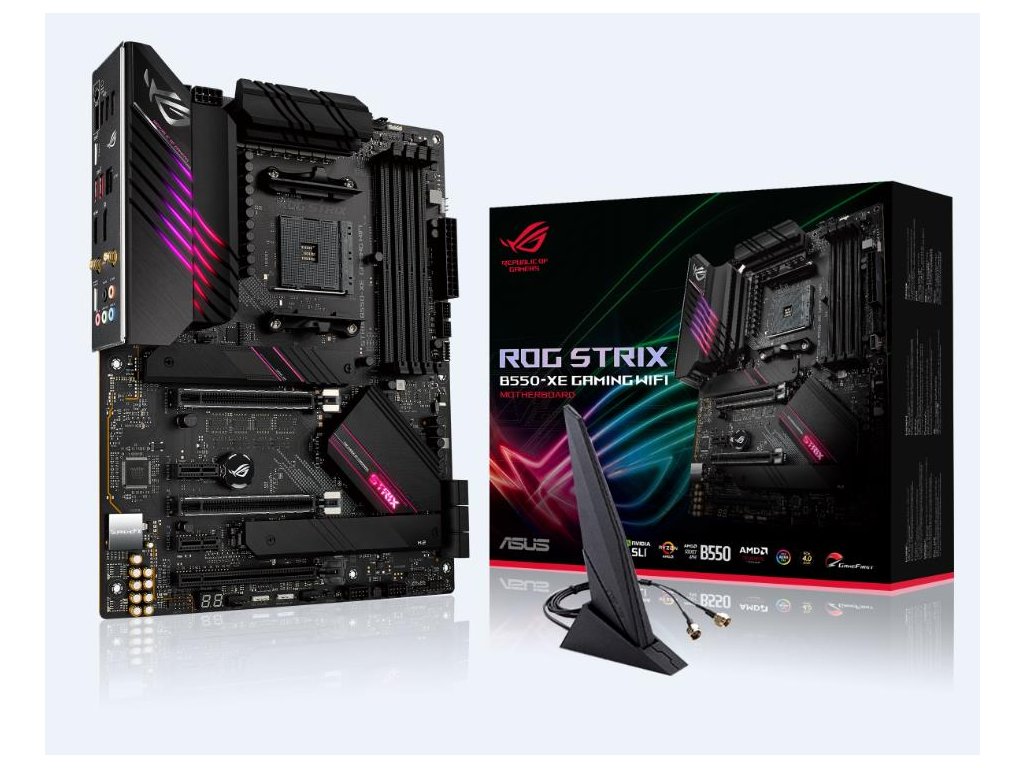

Obsah balení:
* 1x Hyper M.2 x16 Gen 4 Card
* 5x M.2 SSD screw package(s)
* 3x M.2 Rubber Package(s)
* 1x ROG audio USB Type-C® cable
* 1x ROG key chain
* 1x Wi-Fi moving antenna
* User´s manual
* 4x SATA 6Gb/s cable(s)
* 1x Supporting DVD
* 1x ROG Strix stickers
* 1x Cable ties pack(s)
* 1x Extension Cable for RGB strips (80 cm)
* 1x Extension cable for Addressable LED
* 1x ROG Thank you card
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Stránka výrobce: https://rog.asus.com/motherboards/rog-strix/rog-strix-b550-xe-gaming-wifi-model https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215
