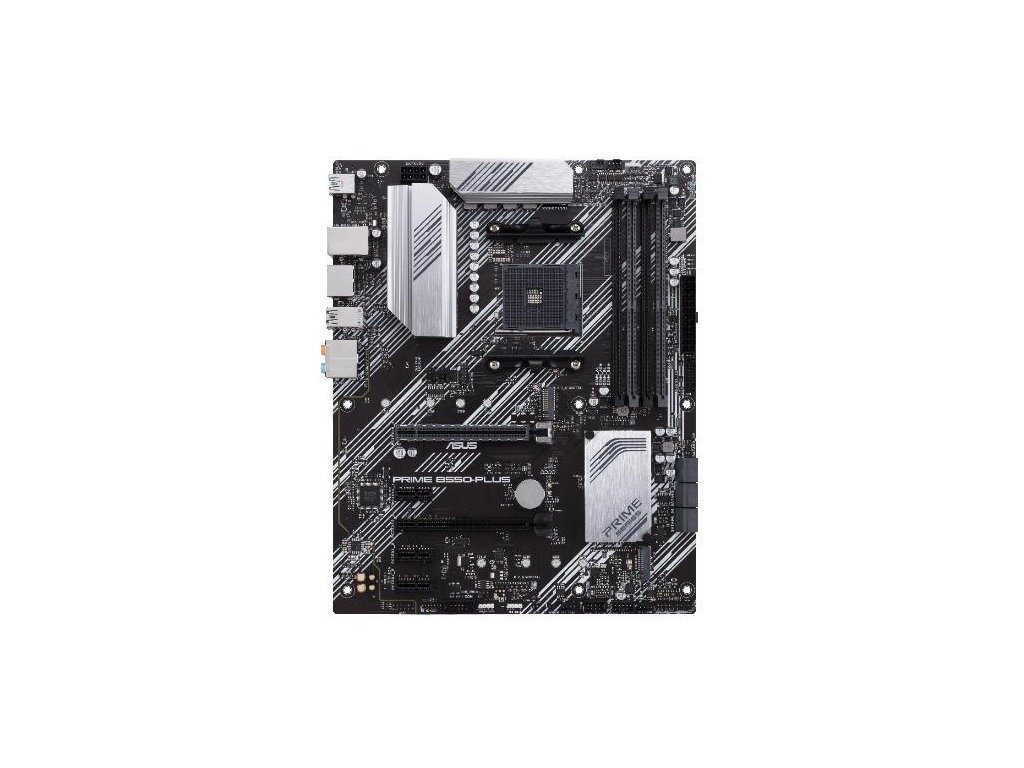

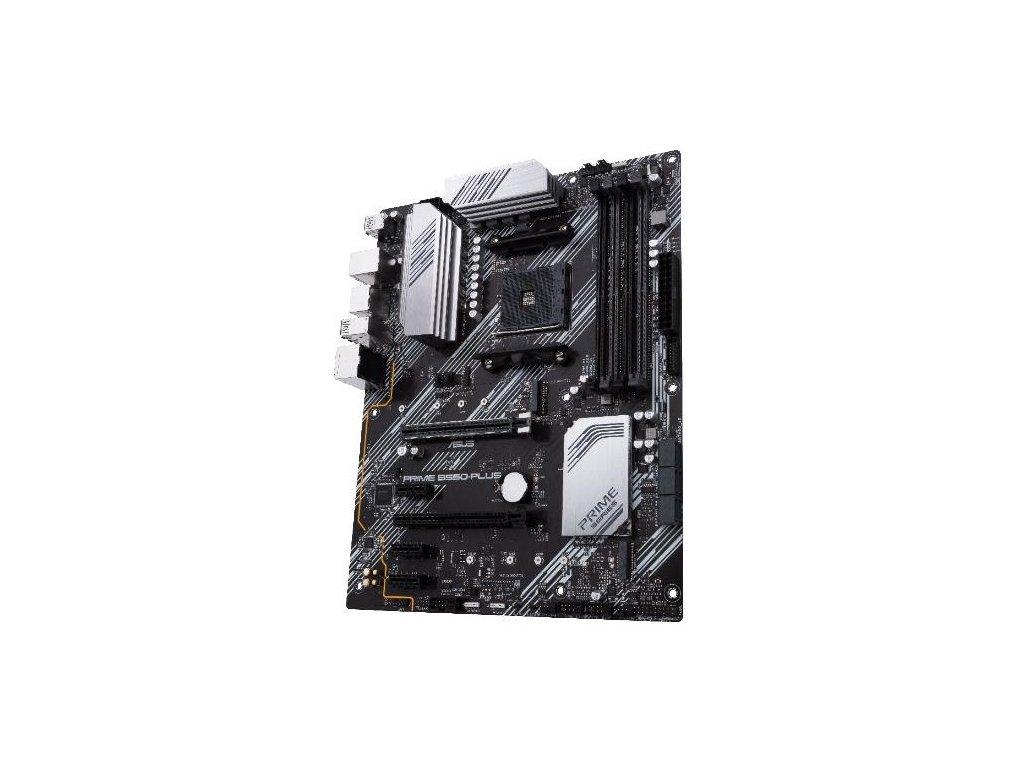

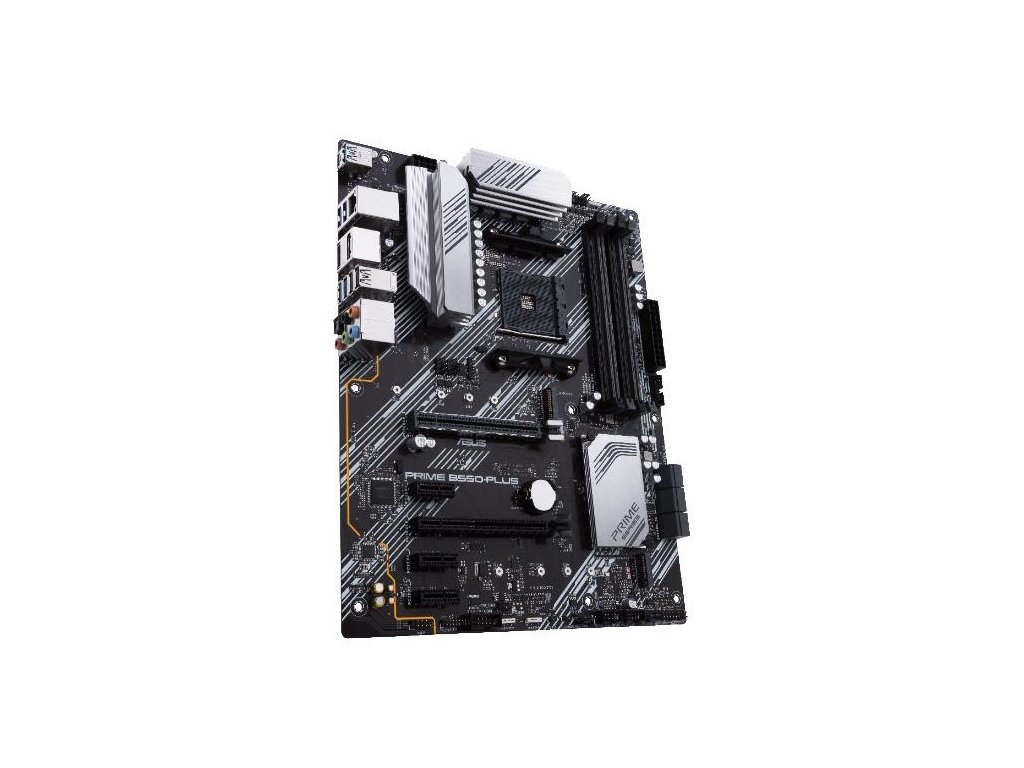

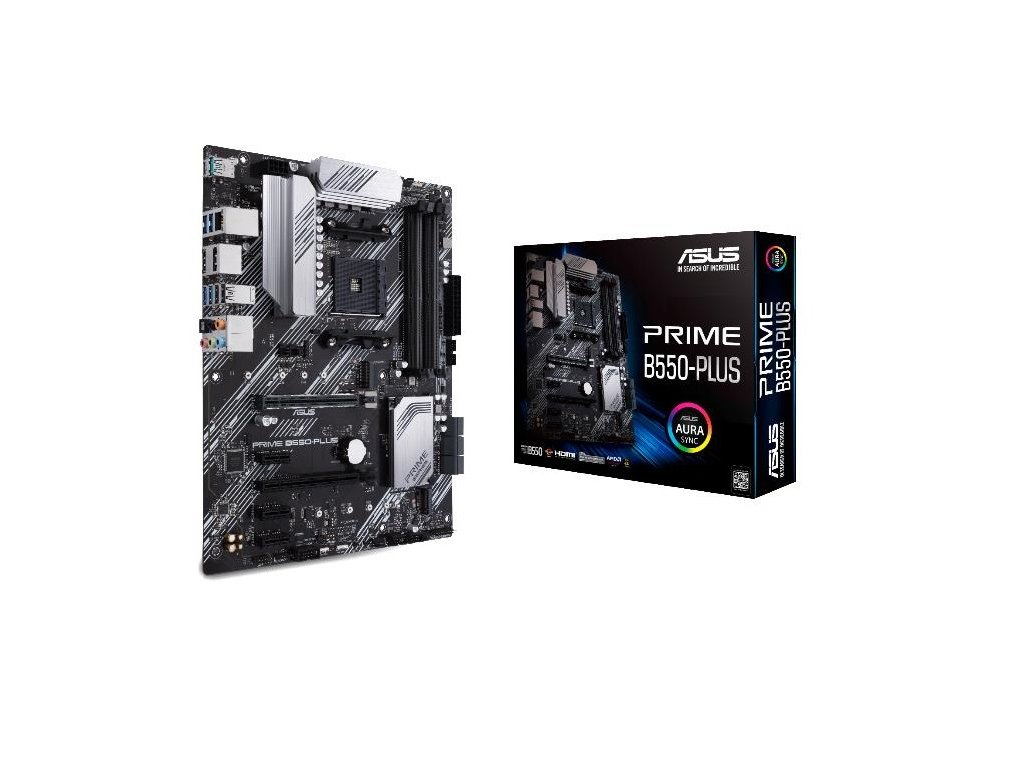

ASUS PRIME B550-PLUS/AM4/ATX

Podrobný popis

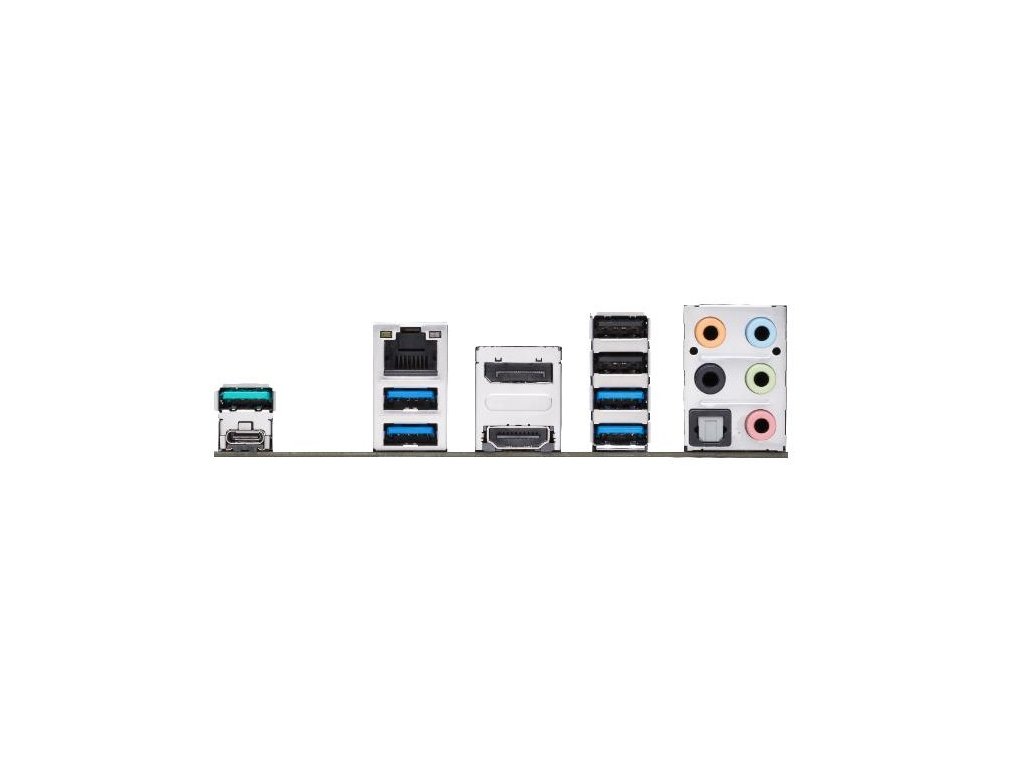

Chipset: AMD B550 Rozměrový formát: ATX Form Factor (305 mm x 244 mm) Podpora pro procesory: AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors Patice procesoru: AM4 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: *4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *Next Generation AMD Ryzen PRO Processors - 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 *Dual Channel Memory Architecture Grafické výstupy: (na základě procesoru) *1x DisplayPort 1.2 *1x HDMI 2.1(4K@60HZ) Multi GPU: *AMD 2-Way CrossFireX Technology Zvuková karta: *Realtek ALC887 7.1-Channel High Definition Audio CODEC Síťová karta: *Realtek® RTL8111H(ASUS LANGuard) Rozšiřující sloty: *1x PCIe 4.0 x16 (x16 mode) *1x PCIe 3.0 x16 (x4 mode) *3x PCIe 3.0 x1 RAID řadič: 0, 1, 10 SATA: *6x SATA 6Gb/s port(s) M.2: *1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) *1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) USB: *zadní USB porty ( celkem 8 ) *2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) *4x USB 3.2 Gen 1 port(s)(4 x Type-A) *2x USB 2.0 port(s)(2 x Type-A) *přední USB porty ( celkem 6 ) *2x USB 3.2 Gen 1 port(s)(2 x Type-A) *4x USB 2.0 port(s)(4 x Type-A) Interní porty: *1x CPU Fan connector(s) *1x CPU OPT Fan connector(s) *3x Chassis Fan connector(s) *1x AIO_PUMP connector *2x Aura RGB Strip Headers *1x Addressable Gen 2 header(s) *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) *2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) *1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) *1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x SPI TPM header *6x SATA 6Gb/s connector(s) *1x Thunderbolt header(s) *1x 24-pin EATX Power connector(s) *1x 8-pin EATX 12V Power connectors *1x Front panel audio connector(s) (AAFP) *1x Thermal sensor connector(s) *1x Clear CMOS jumper(s) *1x System panel connector *1x COM port header Externí porty: *1x DisplayPort *1x HDMI *1x LAN (RJ45) port(s) *2x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®) *4x USB 3.2 Gen 1 (blue) Type-A *2x USB 2.0 *1x Optical S/PDIF out *5x Audio jack(s) Obsah balení: *User's manual *I/O Shield *2x SATA 6Gb/s cable(s) *1x Supporting DVD *1x M.2 SSD screw package(s) BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Stránka výrobce: https://www.asus.com/Motherboards/PRIME-B550-PLUS https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215
