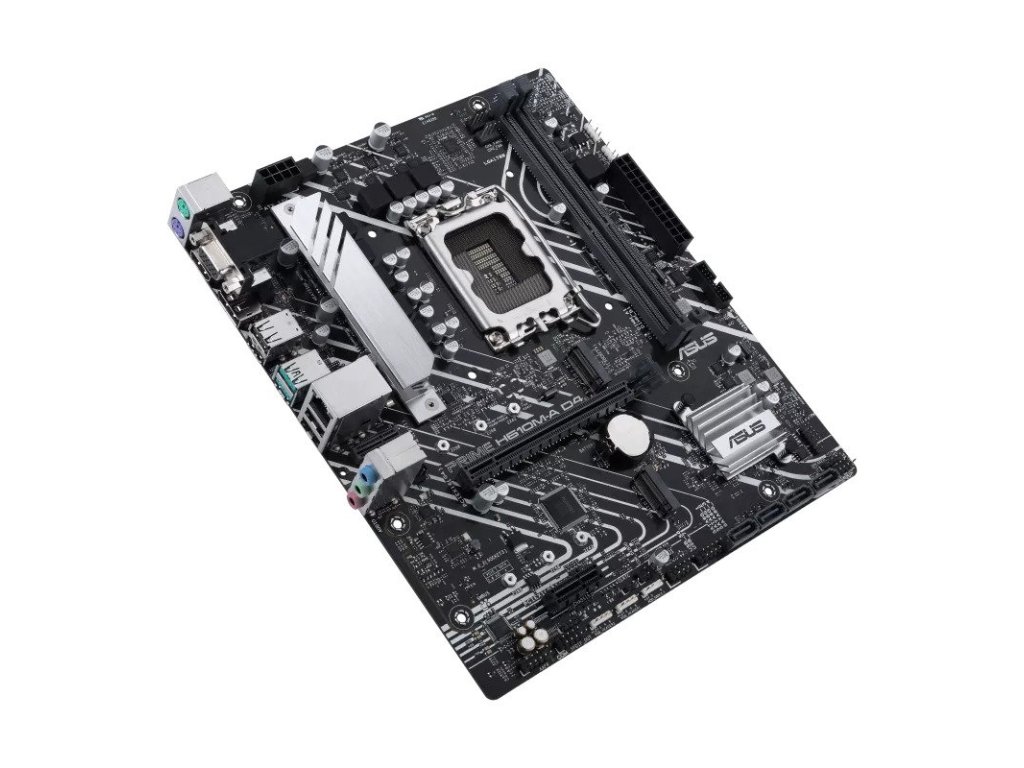

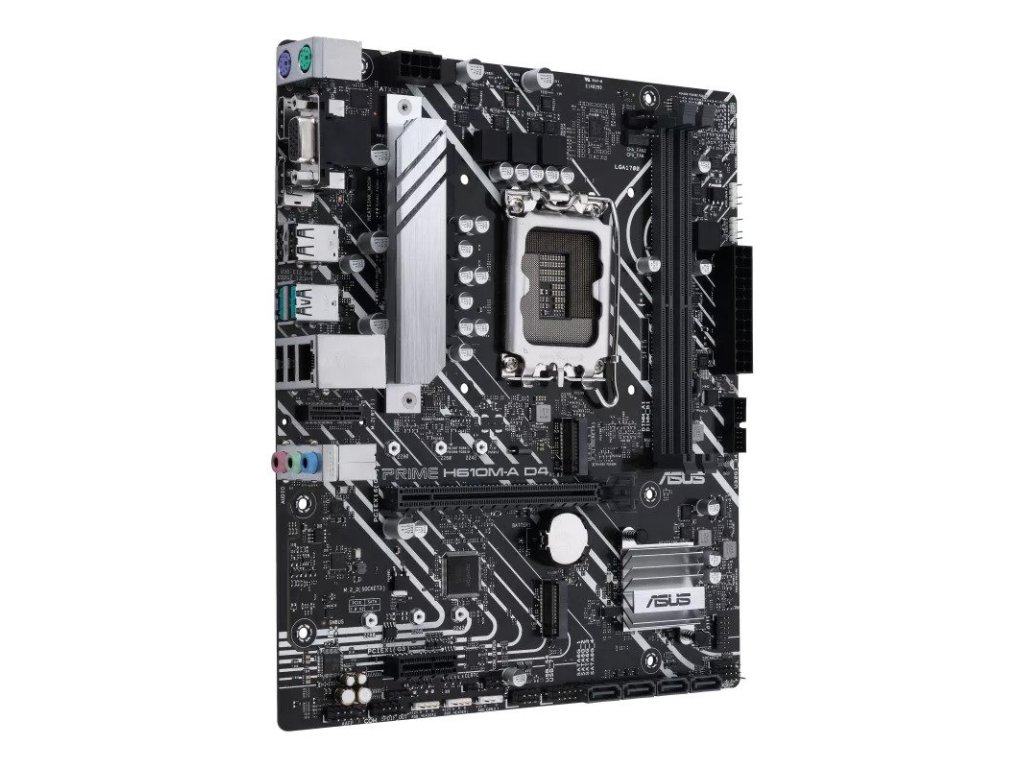

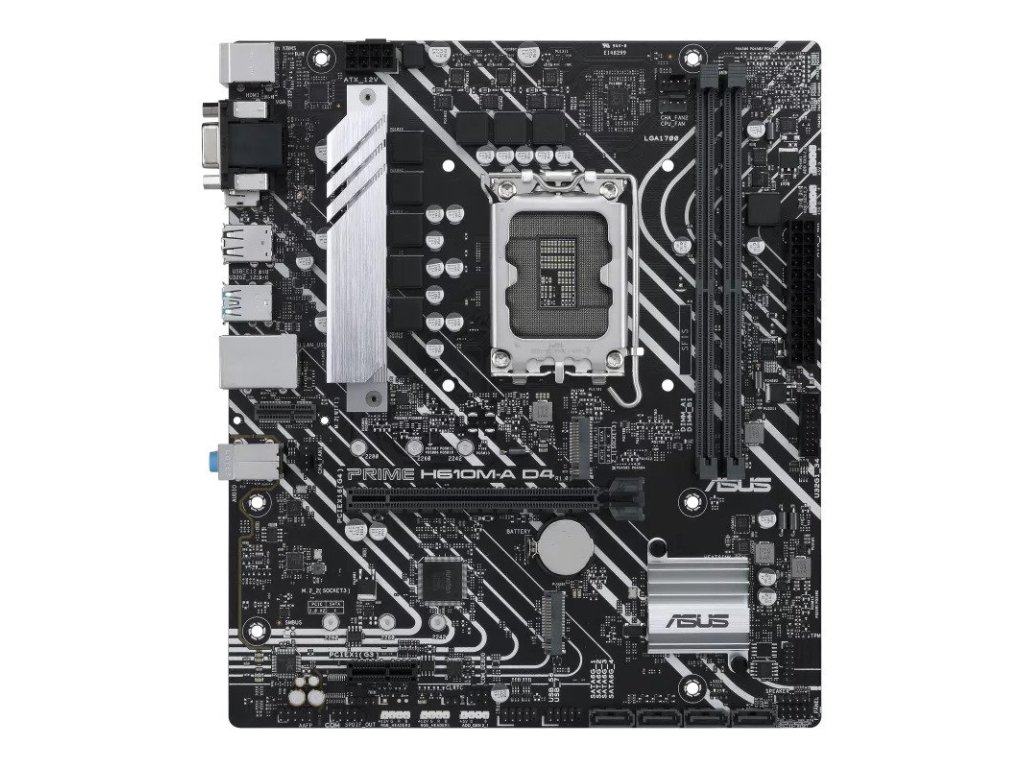

ASUS PRIME H610M-A D4-CSM/LGA 1700/mATX

Podrobný popis

Chipset: Intel H610 Chipset
Rozměrový formát: mATX (24.4 cm x 21.1 cm)
Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors
Patice procesoru: LGA1700
Pozice na paměti: 2 x DIMM, Dual Channel Memory Architecture
Podpora pro paměti: DDR4 3200/3000/2933/2800/2666/2400/2133 MHz
Max.velikost operační paměti: 64 GB
Podpora pro paměti typu: XMP
Grafické výstupy: (na základě procesoru)
* 1 x DisplayPort
* 1 x D-Sub port
* 1 x HDMI port
Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC
Síťová karta: 1 x Intel 1Gb Ethernet
Rozšiřující sloty:
* 1 x PCIe 4.0 x16 slot
* 1 x PCIe 3.0 x1 slot
SATA: 4 x SATA 6Gb/s ports
M.2: 2 x M.2 slots (Key M)
USB:
*
Interní:
* 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
* 2 x USB 2.0 headers support additional 3 USB 2.0 ports
*
Externí:
* 2 x USB 3.2 Gen 2 ports (2 x Type-A)
* 4 x USB 2.0 ports (4 x Type-A)
Interní porty:
*
Fan and Cooling related
* 1 x 4-pin CPU Fan header
* 2 x 4-pin Chassis Fan headers
*
Power related
* 1 x 24-pin Main Power connector
* 1 x 8-pin +12V Power connector
*
Storage related
* 2 x M.2 slots (Key M)
* 4 x SATA 6Gb/s ports
*
USB
* 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
* 2 x USB 2.0 headers support additional 3 USB 2.0 ports
*
Miscellaneous
* 3 x Addressable Gen 2 headers
* 2 x AURA RGB headers
* 1 x Clear CMOS header
* 1 x Front Panel Audio header (AAFP)
* 1 x COM Port header
* 1 x S/PDIF Out header
* 1 x Speaker header
* 1 x SPI TPM header (14-1pin)
* 1 x 10-1 pin System Panel header

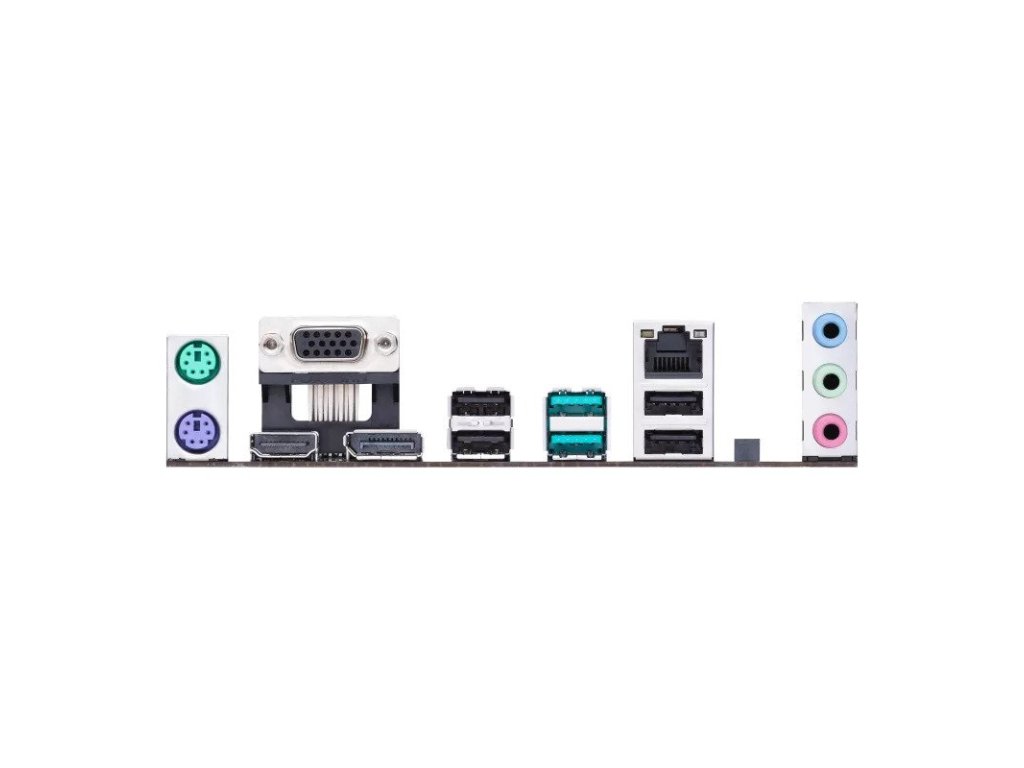

Externí porty:
* 2 x USB 3.2 Gen 2 ports (2 x Type-A)
* 4 x USB 2.0 ports (4 x Type-A)
* 1 x DisplayPort
* 1 x HDMI port
* 1 x D-Sub port
* 1 x V-M.2 slot (Key E)
* 1 x Intel 1Gb Ethernet port
* 3 x Audio jacks
* 1 x PS/2 Keyboard (purple) port
* 1 x PS/2 Mouse (green) port
BIOS: UEFI AMI BIOS, 128 Mb Flash ROM
