ASUS PRO H810M-C-CSM

Podrobný popis

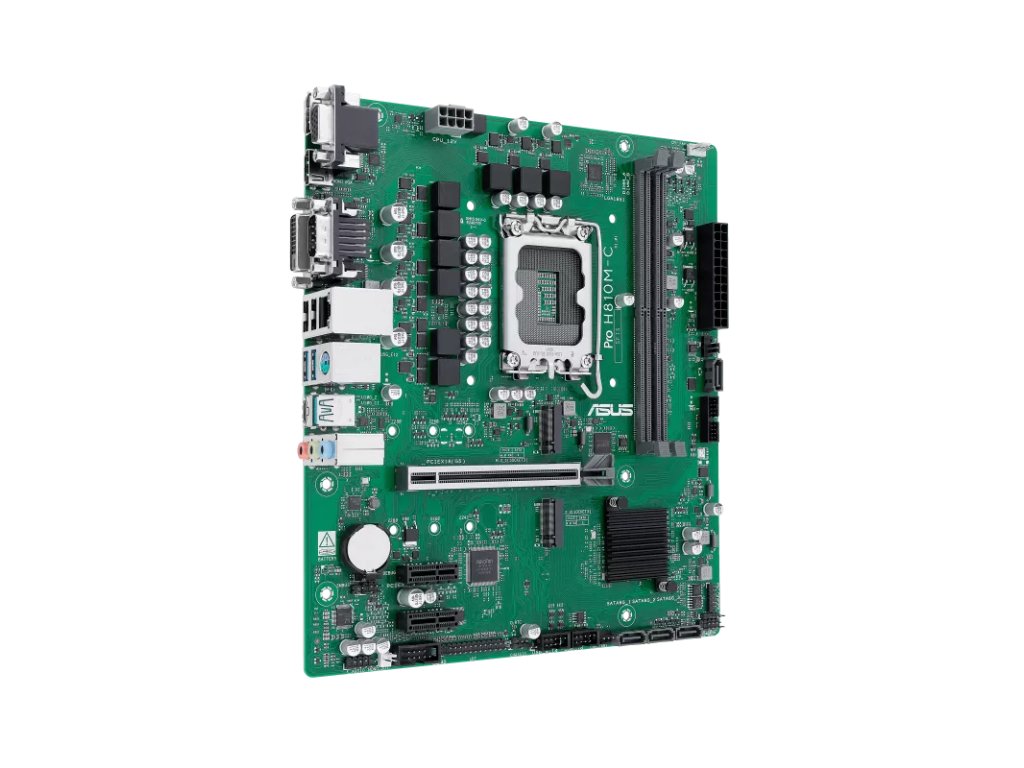

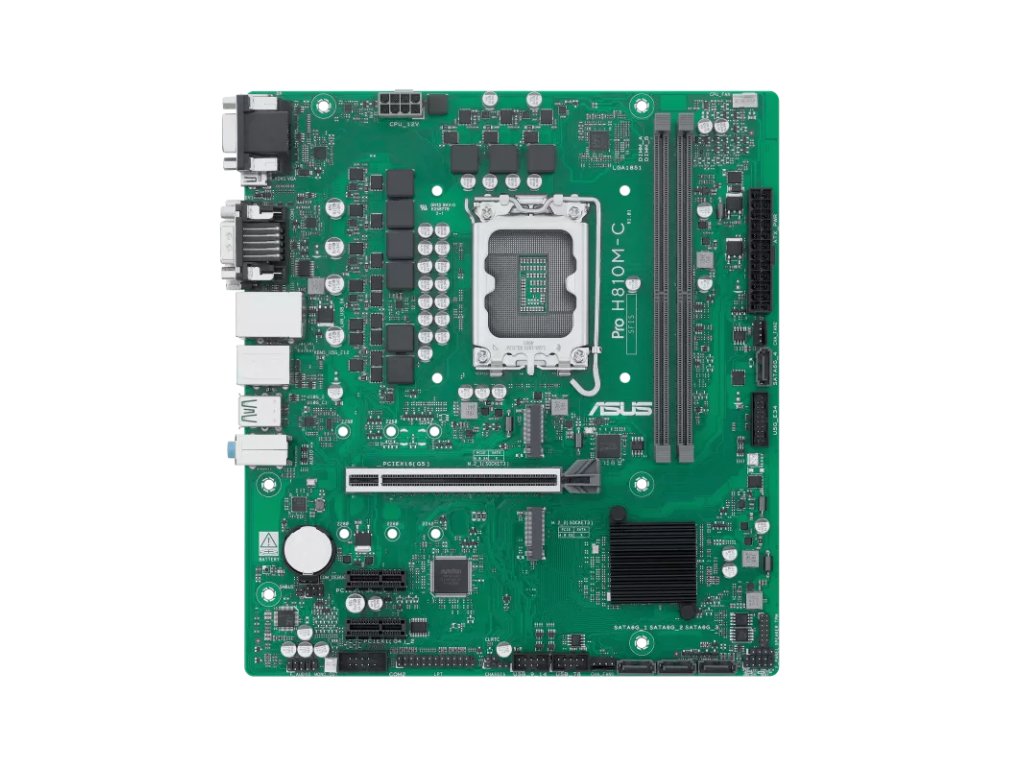

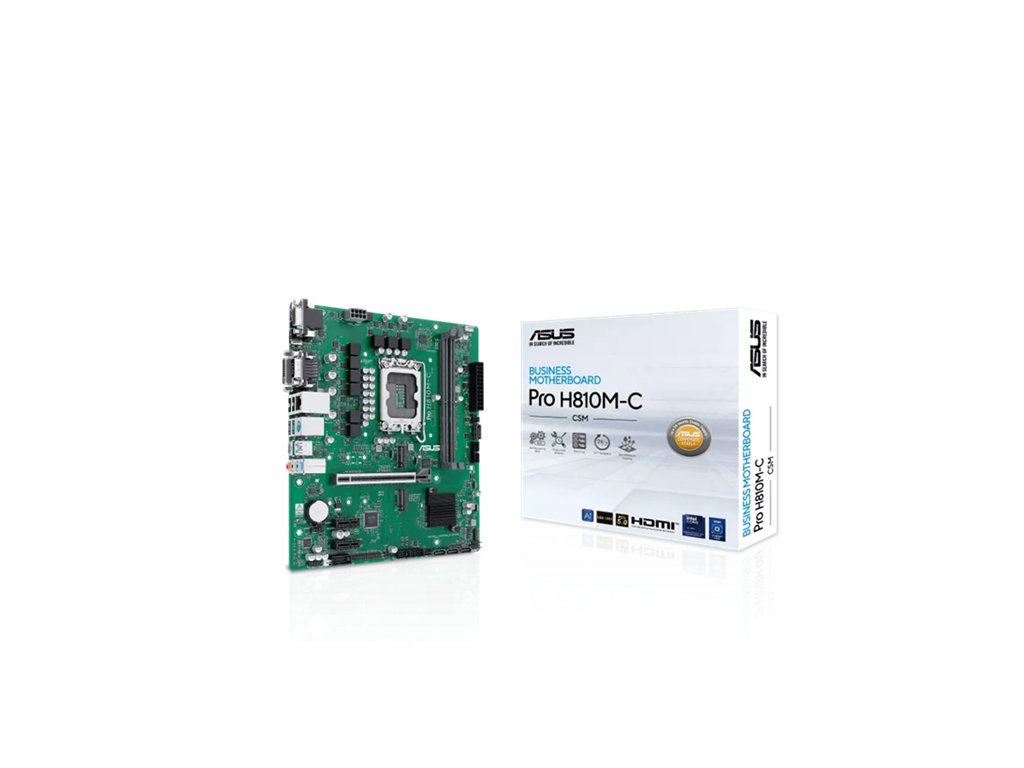

ASUS PRO H810M-C-CSM
*  mATX Form Factor
CPU: Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 - Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset: Intel H810 Chipset
Paměť: 2 x DIMM slots, max. 128GB, DDR5
* Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
* Dual channel memory architecture
* DIMM Fit
* Supports Intel® Extreme Memory Profile (XMP) memory module
* ASUS Enhanced Memory Profile II (AEMP II)
Grafické porty:
* 1 x DisplayPort
* 1 x VGA port
* 1 x DVI-D port
* 1 x HDMI™ port
Rozšiřující sloty: Intel® Core™ Ultra Processors (Series 2)
* 1 x PCIe 5.0 x16 slot Intel® H810 Chipset
* 2 x PCIe 4.0 x1 slots
Úložný prostor: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H810 Chipset
* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
* M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
* 4 x SATA 6Gb/s ports
Ethernet:
* 1 x Intel® 1Gb Ethernet port
* ASUS LANGuard
USB: Zadní USB (Total 7 ports)
* 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
* 2 x USB 5Gbps ports (2 x Type-A)
* 2 x USB 2.0 ports (2 x Type-A) Přední USB (Total 7 ports)
* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
* 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
*
* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
* Supports up to 24-Bit/192 kHz playback

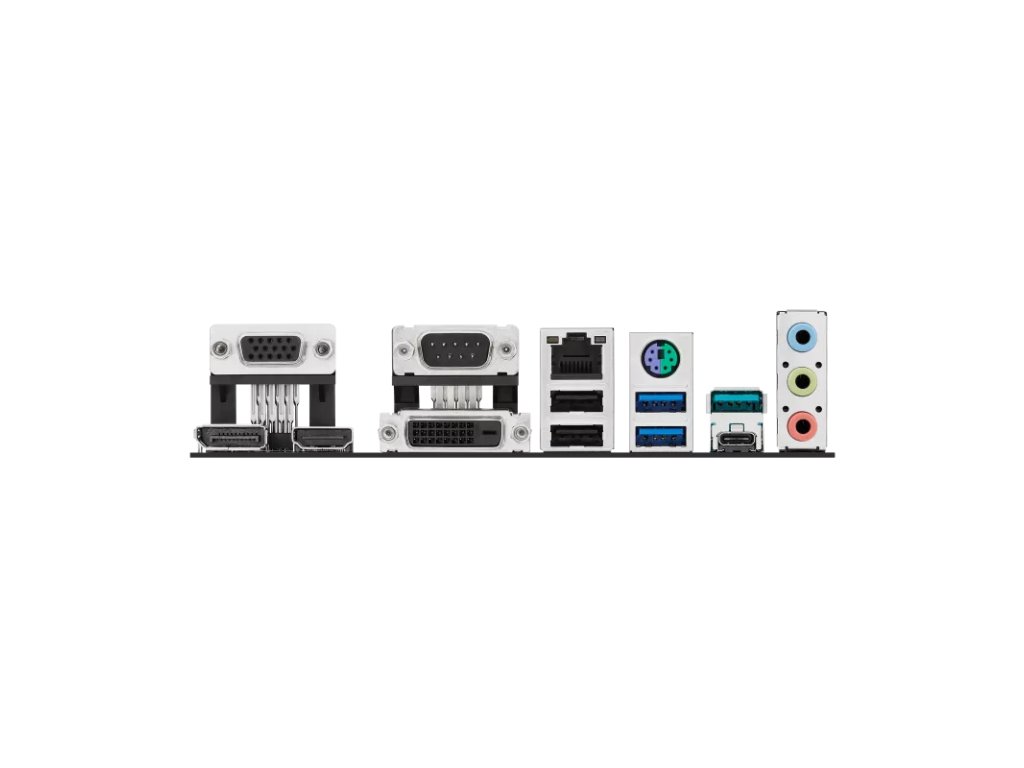

Vstupy/výstupy zadního panelu:
* 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
* 2 x USB 5Gbps ports (2 x Type-A)
* 2 x USB 2.0 ports (2 x Type-A)
* 1 x DisplayPort
* 1 x VGA port
* 1 x DVI-D port
* 1 x HDMI™ port
* 1 x Intel® 1Gb Ethernet port
* 3 x Audio jacks
* 1 x COM port
* 1 x PS/2 keyboard/mouse combo port
Interní vstupy/výstupy: Ventilátory a chlazení:
* 1 x 4-pin CPU Fan header
* 2 x 4-pin Chassis Fan headers Napájení:
* 1 x 24-pin Main Power connector
* 1 x 8-pin +12V CPU Power connector Úložiště:
* 2 x M.2 slots (Key M)
* 4 x SATA 6Gb/s ports USB:
* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
* 2 x USB 2.0 headers support 4 additional USB 2.0 ports Různé:
* 1 x Clear CMOS header
* 1 x Chassis Intrusion header
* 1 x COM Port header
* 1 x Front Panel Audio header (F_AUDIO)
* 1 x COM Debug header
* 1 x LPT header
* 1 x Mono-Out Audio header (with Amp IC)
* 1 x SMBUS header
* 1 x Speaker header
* 1 x SPI TPM header (14-1 pin)
* 1 x 10-1 pin Front Panel System header
Příslušenství: Kabely:
* 2 x SATA 6Gb/s cables Různé:
* 1 x I/O shield
* 1 x M.2 anchor package Dokumenty:
* 1 x ACC Express activation key card
* 1 x Quick start guide
