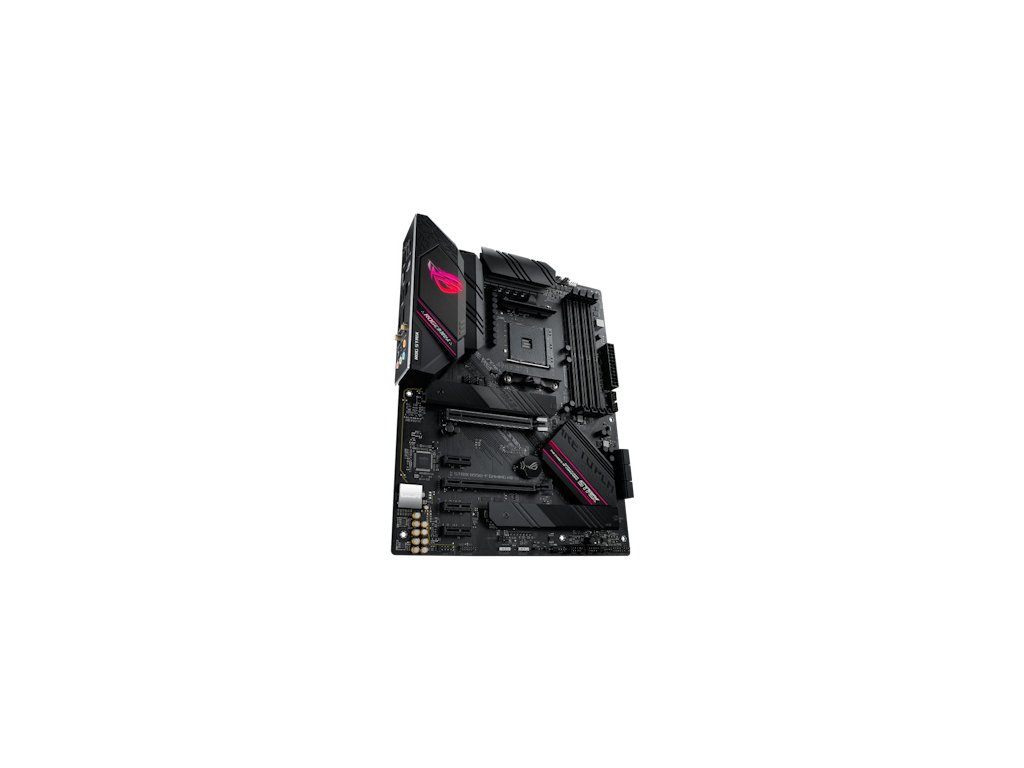

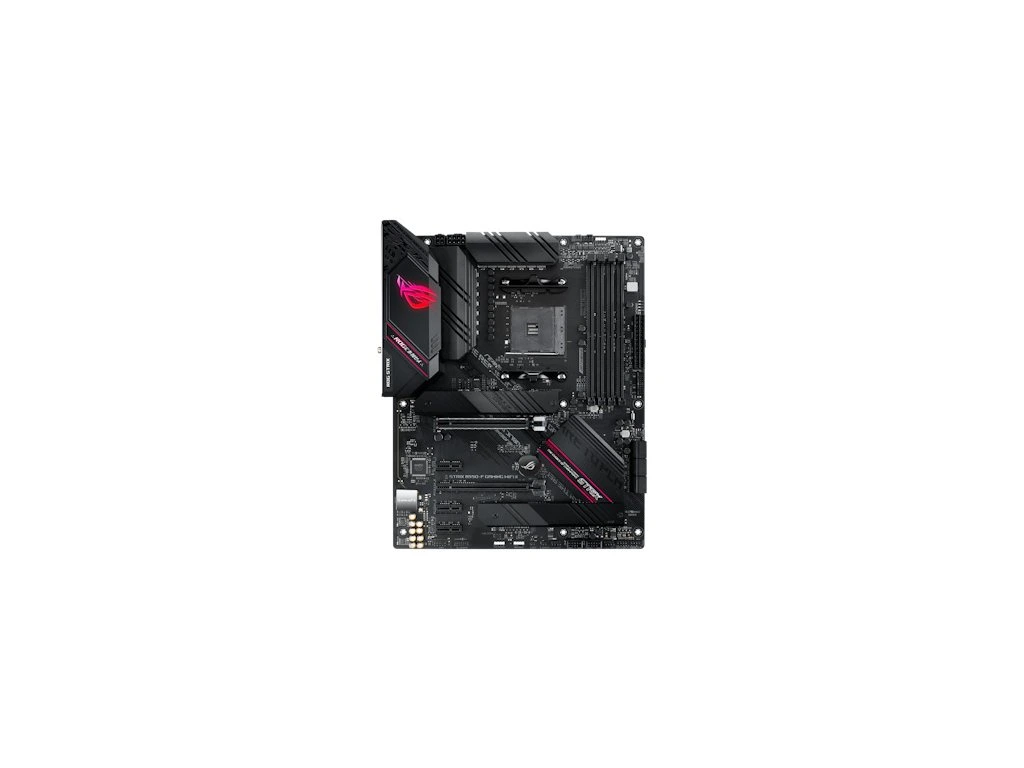

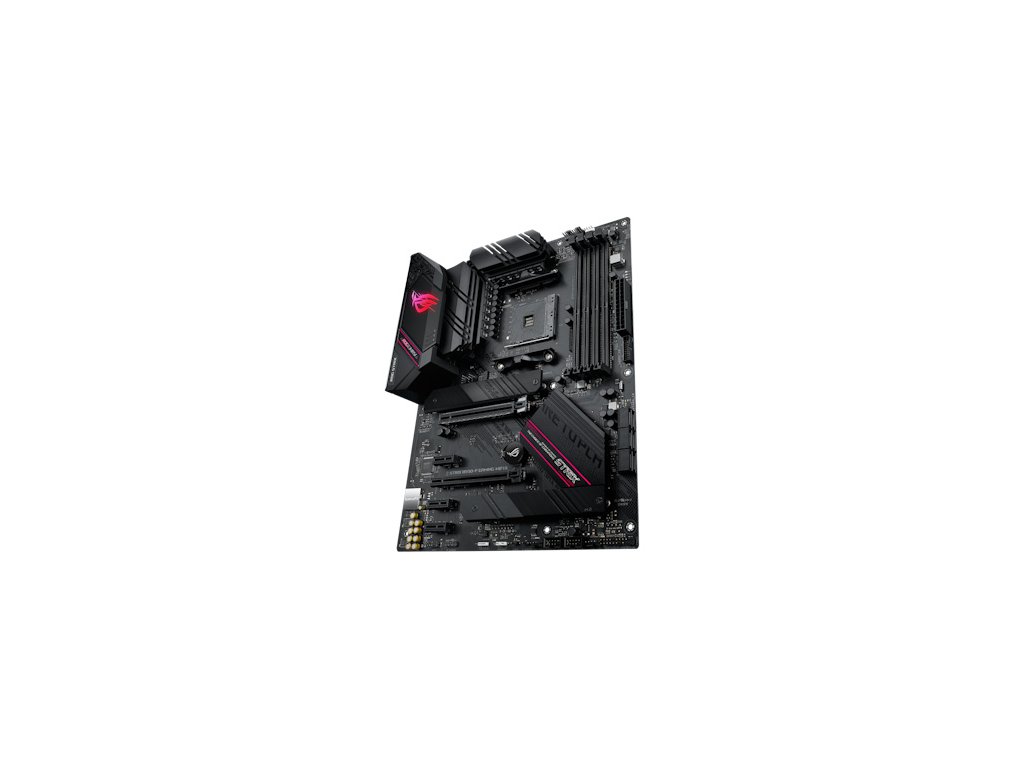

ASUS ROG STRIX B550-F GAMING WI-FI II/AM4/ATX

Podrobný popis

Chipset: B550
Rozměrový formát: ATX (30.5cm x 24.4cm)
Podpora pro procesory: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series
Pozice na paměti: 4 x DIMM,DDR4
Podpora pro paměti:
*
AMD Ryzen 5000 and 3000 Series Desktop Procesors
* DDR4 4800(O.C.)/4666(O.C.)/4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz
*
AMD Ryzen 5000 and 4000 G-Series Processors
* DDR4 5100(O.C)/4866(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz,
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: ECC
Zvuková karta: ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
Síťová karta:
* 1 x Intel I225-V 2.5Gb Ethernet
* WI-FI 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
* Bluetooth v5.2
Rozšiřující sloty:
* 1 x PCIe 4.0 x16 SafeSlot (supports x16 mode)
* 1 x PCIe 3.0 x16 slot (supports x4 mode)
* 3 x PCIe 3.0 x1 slots
RAID řadič: RAID 0, 1, 10
SATA: 6 x SATA 6Gb/s ports
M.2: 2 x M.2 slots (Key M)
USB:
*
Interní:
* 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
* 2 x USB 2.0 headers support additional 4 USB 2.0 ports
*
Externí:
* 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
* 4 x USB 3.2 Gen 1 ports (4 x Type-A)
* 2 x USB 2.0 ports
Interní porty:
*
Fan and cooling related
* 1 x 4-Pin AIO_Pump header
* 1 x 4-Pin CPU fan header
* 1 x 4-Pin CPU_OPT fan header
* 3 x 4-Pin Chassis fan headers
*
Power related
* 1 x 24-pin main power connector
* 1 x 8-pin +12V power connector
* 1 x 4-pin +12V power connector
*
Storage related
* 2 x M.2 slots (Key M)
* 6 x SATA 6Gb/s ports
*
USB ports
* 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
* 2 x USB 2.0 headers support additional 4 USB 2.0 ports
*
Miscellaneous
* 1 x Addressable Gen 2 header
* 2 x AURA RGB headers
* 1 x Clear CMOS header
* 1 x Front panel audio header (AAFP)
* 1 x 20-3 pin System Panel header with Chassis intrude function
* 1 x Thermal sensor header
* 1 x Thunderbolt header
Externí porty:
* 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
* 4 x USB 3.2 Gen 1 ports (4 x Type-A)
* 2 x USB 2.0 ports
* 1 x Wi-Fi Modul
* 1 x DisplayPort
* 1 x HDMI port
* 1 x Intel I225-V 2.5G Ethernet
* 1 x Optical S/PDIF out
* 5 x Audio jacks
* 1 x BIOS FlashBack button
BIOS: UEFI AMI BIOS, 256 Mb Flash ROM
