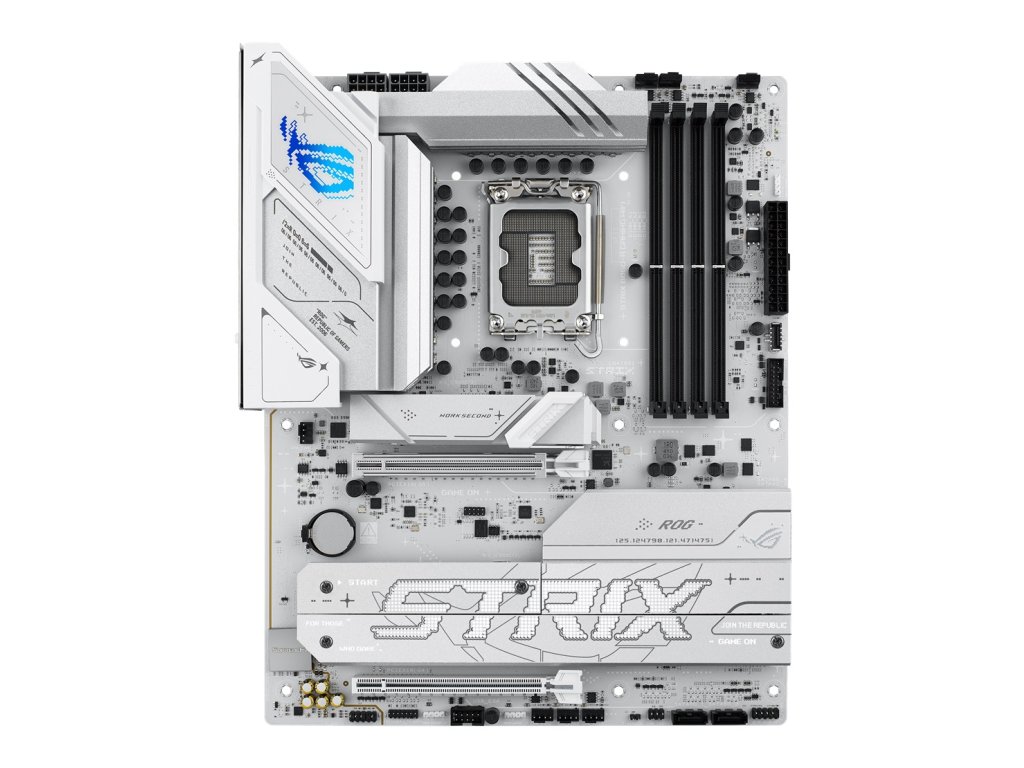

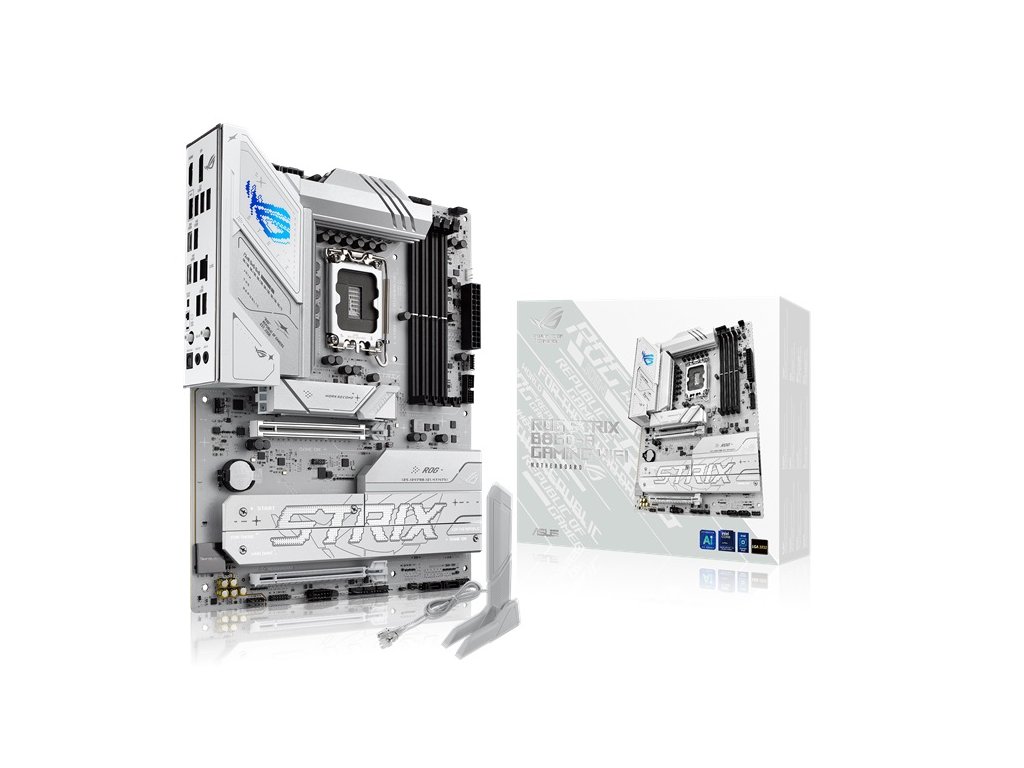

ASUS ROG STRIX B860-A GAMING WIFI

Podrobný popis

ASUS ROG STRIX B860-A GAMING WIFI
*  ATX Form Factor
CPU: Support Intel® Core™ Ultra Processors (Series 2), Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset: Intel® B860 Chipset
Paměť: 4 x sloty DIMM, max. 192 GB, DDR5 - Podporuje až 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
* Dvoukanálová paměťová architektura
* DIMM Fit
* Podporuje paměťový modul Intel® Extreme Memory Profile (XMP)
* ASUS Enhanced Memory Profile III(AEMPIII)
Grafické porty:
* 1 x DisplayPort
* 1 x HDMI™ port
* 1 x USB4® (20Gbps) ports support USB Type-C® display outputs
Rozšiřující sloty: Intel® Core™ Ultra Processors (Series 2)
* 1 x PCIe 5.0 x16 slot Intel® B860 Chipset
* 1 x PCIe 4.0 x16 slot (supports x4 mode)
Úložný prostor: Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors (Series 2)
* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset
* M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
* M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
* M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
* 4 x SATA 6Gb/s ports
Ethernet:
* 1 x Intel® 2.5Gb Ethernet
* ASUS LANGuard
Připojení a Bluetooth:
* Wi-Fi 7
*
* 2x2 Wi-Fi 7 (802.11be)
* Supports 2.4/5/6GHz frequency band
* Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
* Bluetooth® v5.4
USB: Zadní USB (Total 7 ports)
* 1 x USB4® (20Gbps) port (1 x USB Type-C®)
* 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
* 2 x USB 5Gbps ports (2 x Type-A)
* 4 x USB 2.0 ports (4 x Type-A) Přední USB (Total 7 ports)
* 1 x USB 10Gbps connector (supports USB Type-C®)
* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
* 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
* SupremeFX Shielding Technology
* Savitech SV3H712 AMP
* Rear optical S/PDIF out port
* Premium audio capacitors
* Dedicated audio PCB layers
* Audio cover

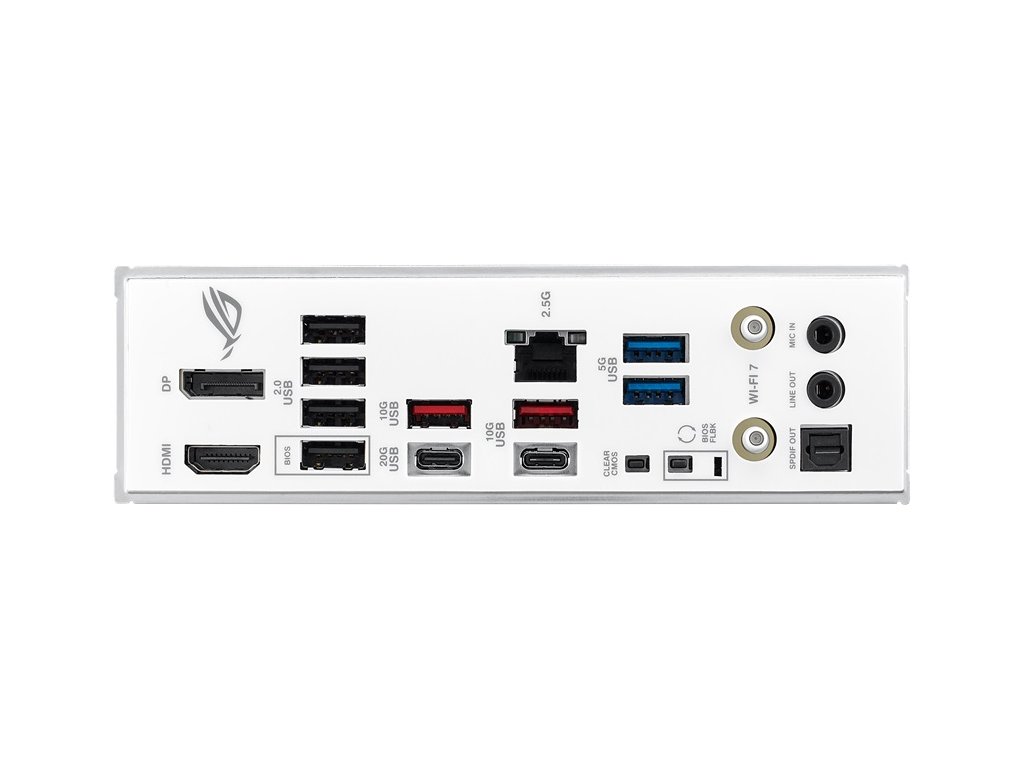

Vstupy/výstupy zadního panelu:
* 1 x USB4® (20Gbps) port (1 x USB Type-C®)
* 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
* 2 x USB 5Gbps ports (2 x Type-A)
* 4 x USB 2.0 ports (4 x Type-A)
* 1 x DisplayPort
* 1 x HDMI™ port
* 1 x Wi-Fi module
* 1 x Intel® 2.5Gb Ethernet port
* 2 x Audio jacks
* 1 x Optical S/PDIF out port
* 1 x BIOS FlashBack™ button
* 1 x Clear CMOS button
Interní vstupy/výstupy: Ventilátory a chlazení:
* 1 x 4-pin CPU Fan header
* 1 x 4-pin CPU OPT Fan header
* 1 x 4-pin AIO Pump header
* 4 x 4-pin Chassis Fan headers Napájení:
* 1 x 24-pin Main Power connector
* 2 x 8-pin +12V CPU Power connector Úložiště:
* 4 x M.2 slots (Key M)
* 4 x SATA 6Gb/s ports USB:
* 1 x USB 10Gbps connector (supports USB Type-C® )
* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
* 1 x USB 2.0 header supports 2 additional USB 2.0 ports Různé:
* 3 x Addressable Gen2 header(s)
* 1 x Front Panel Audio header (F_AUDIO)
* 1 x 10-1 pin Front System Panel header
* 1 x Thermal Sensor header
* 1 x Thunderbolt™ (USB4®) header
Příslušenství: Kabely:
* 2 x SATA 6Gb/s cables Různé:
* 1 x ASUS WiFi Q-Antenna
* 1 x Cable ties package
* 1 x M.2 Q-Latch
* 1 x M.2 Q-Slide
* 1 x ROG Strix stickers
* 4 x M.2 rubbers Dokumenty:
* 1 x Quick start guide
