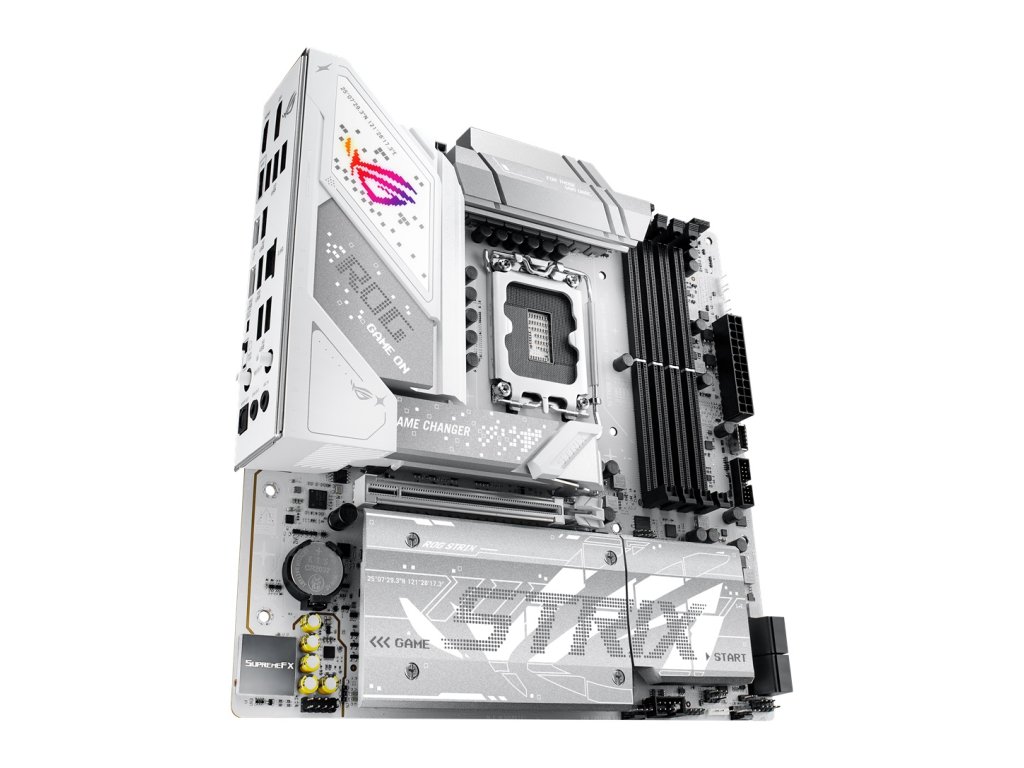

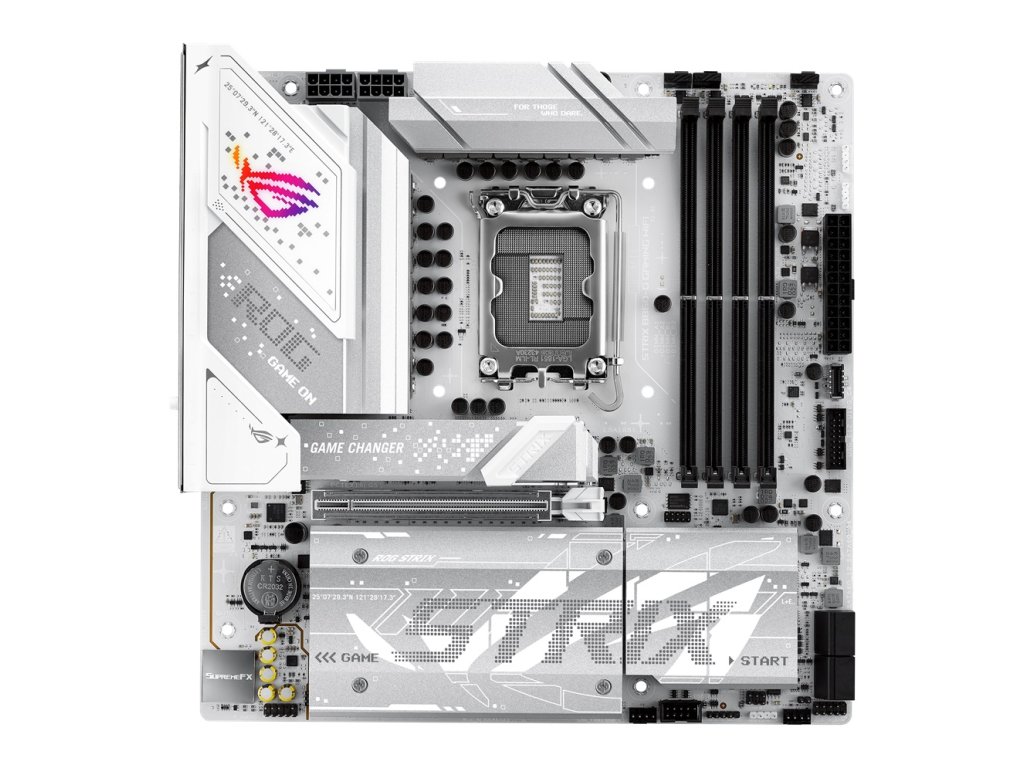

ASUS ROG STRIX B860-G GAMING WIFI

Podrobný popis

ASUS ROG STRIX B860-G GAMING WIFI
*  mATX Form Factor
CPU: Support Intel® Core™ Ultra Processors(Series 2) LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset: Intel® B860 Chipset
Paměť: 4 x sloty DIMM, max. 192 GB, DDR5 - Podpora až 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
* Dvoukanálová paměťová architektura
* Podpora paměťového modulu Intel® Extreme Memory Profile (XMP)
* ASUS Enhanced Memory Profile III(AEMPIII)
Grafické porty:
* 1 x DisplayPort
* 1 x HDMI™ port
* 1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs
Rozšiřující sloty: Intel® Core™ Ultra Processors(series 2)
* 1 x PCIe 5.0 x16 slot
Úložný prostor: Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors(series 2)
* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset
* M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4)
* M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4)
* M.2_4 slot (Key M), type 2230/2280 (supports PCIe 4.0 x4)
* 4 x SATA 6Gb/s ports
Ethernet:
* 1 x Intel® 2.5Gb Ethernet
Připojení a Bluetooth:
* Wi-Fi 7
* 2x2 Wi-Fi 7 (802.11be)
* Supports 2.4/5/6GHz frequency band
* Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
* Bluetooth® v5.4
USB: Zadní USB (Total 7 ports)
* 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
* 1 x USB 20Gbps port(s) (1 x USB Type-C®)
* 1 x USB 10Gbps port(s) (1 x Type-A)
* 3 x USB 5Gbps port(s) (3 x Type-A)
* 4 x USB 2.0 port(s) (4 x Type-A) Přední USB (Total 7 ports)
* 1 x USB 10Gbps connector
* 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
* 2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports
Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
* SupremeFX Shielding Technology
* Savitech SV3H712 AMP
* Rear optical S/PDIF out port
* Premium audio capacitors
* Audio cover

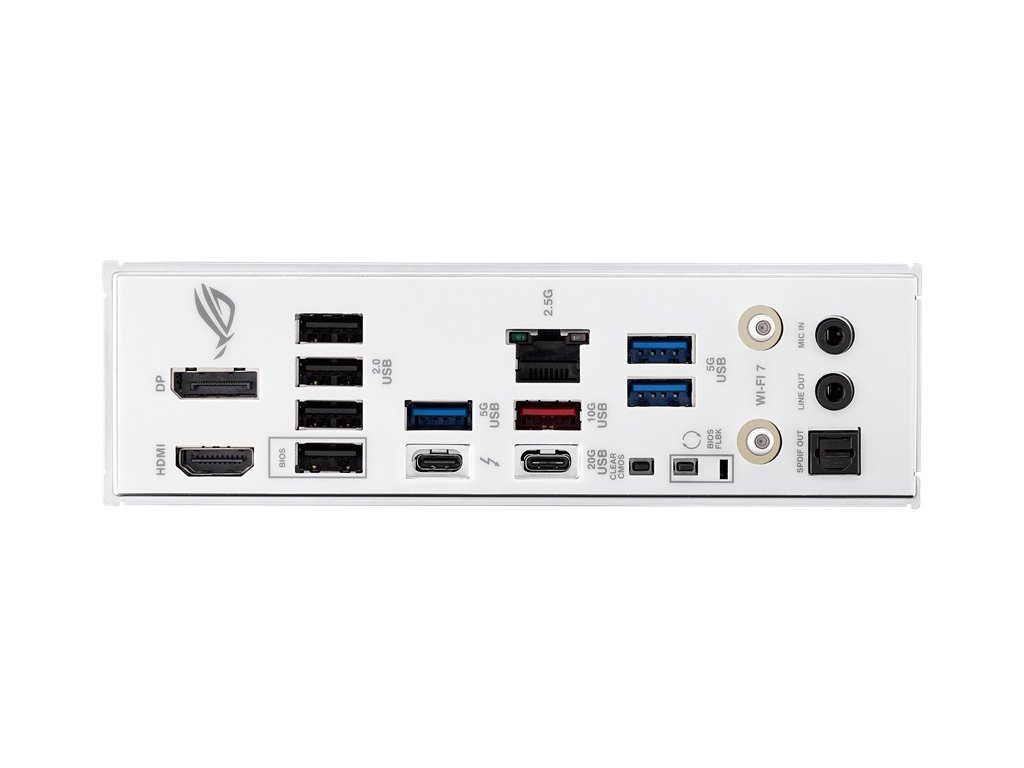

Vstupy/výstupy zadního panelu:
* 1 x Thunderbolt™ 4 USB Type-C® port(s)
* 1 x USB 20Gbps port(s) (1 x USB Type-C® with DP Alt mode)
* 1 x USB 10Gbps port(s) (1 x Type-A)
* 3 x USB 5Gbps port(s) (3 x Type-A)
* 4 x USB 2.0 port(s) (4 x Type-A)
* 1 x DisplayPort
* 1 x HDMI™ port
* 1 x Wi-Fi module
* 1 x Intel® 2.5Gb Ethernet port
* 2 x Audio jacks
* 1 x Optical S/PDIF out port
* 1 x BIOS FlashBack™ button
* 1 x Clear CMOS button
Interní vstupy/výstupy: Ventilátory a chlazení:
* 1 x 4-pin CPU Fan header(s)
* 1 x 4-pin CPU OPT Fan header(s)
* 1 x 4-pin AIO Pump header(s)
* 2 x 4-pin Chassis Fan header(s) Napájení:
* 1 x 24-pin Main Power connector
* 2 x 8-pin +12V CPU Power connector Úložiště:
* 4 x M.2 slots (Key M)
* 1 x M.2 Vertical slot (Key M)
* 4 x SATA 6Gb/s ports USB:
* 1 x USB 10Gbps connector (support(s) USB Type-C® )
* 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
* 2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports Různé:
* 3 x Addressable Gen 2 header(s)
* 1 x Front Panel Audio header (F_AUDIO)
* 1 x 10-1 pin Front System Panel header
* 1 x Thermal Sensor header

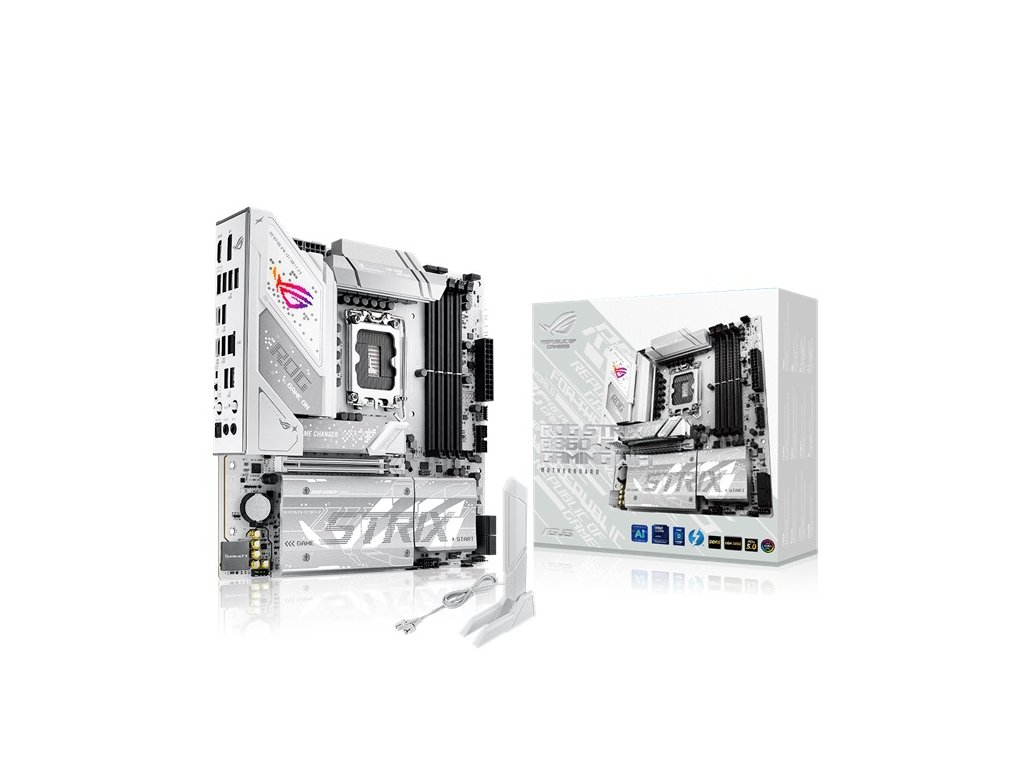

Příslušenství: Kabely:
* 2 x SATA 6Gb/s cables Různé:
* 1 x ASUS WiFi Q-Antenna
* 1 x Cable ties package
* 1 x M.2 Q-Latch package(s)
* 1 x M.2 Q-Slide package
* 1 x ROG key chain
* 1 x ROG Strix sticker
* 3 x M.2 rubber package(s)
* 1 x M.2 backplate rubber package(s) Dokumenty:
* 1 x Quick start guide
