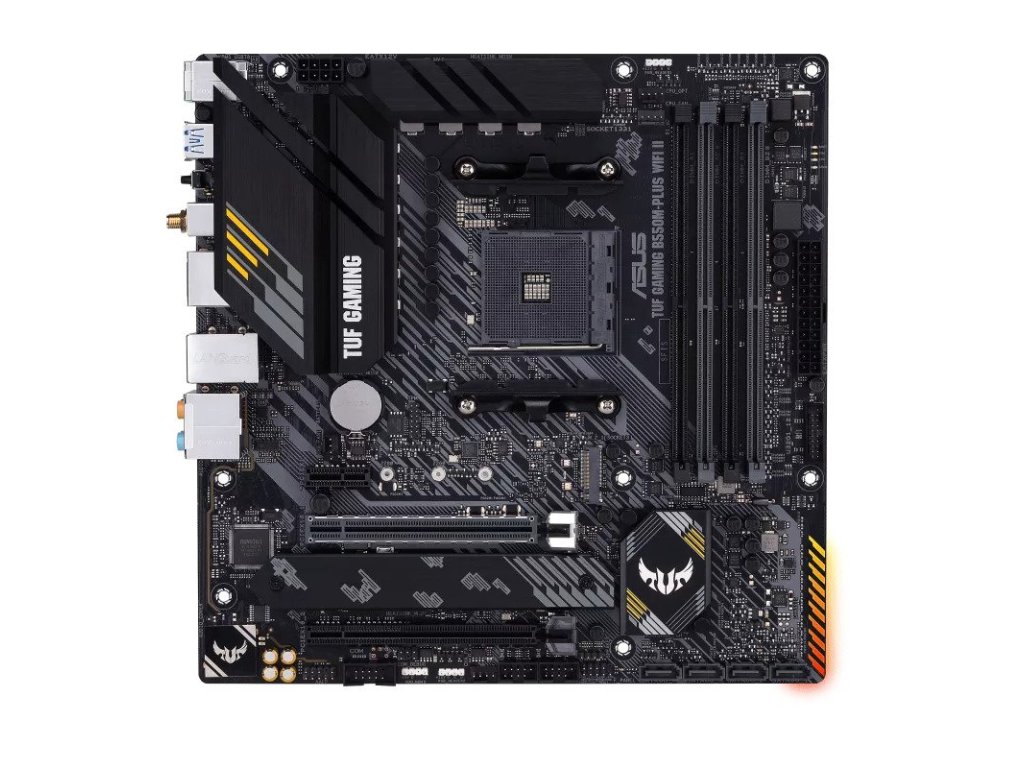

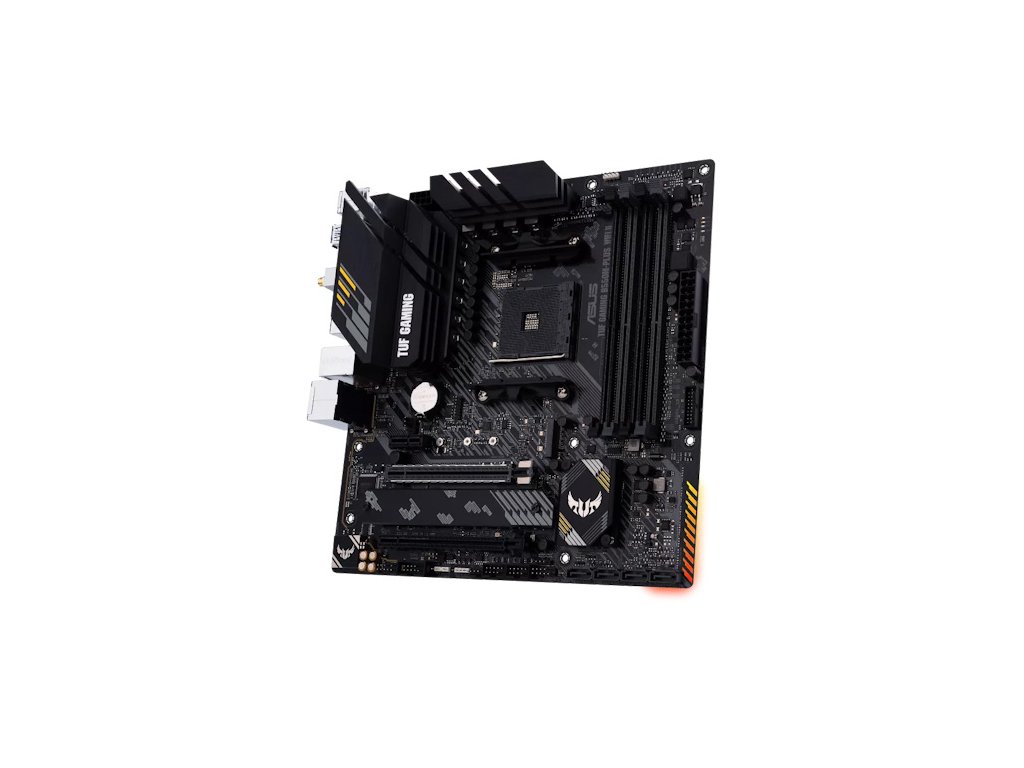

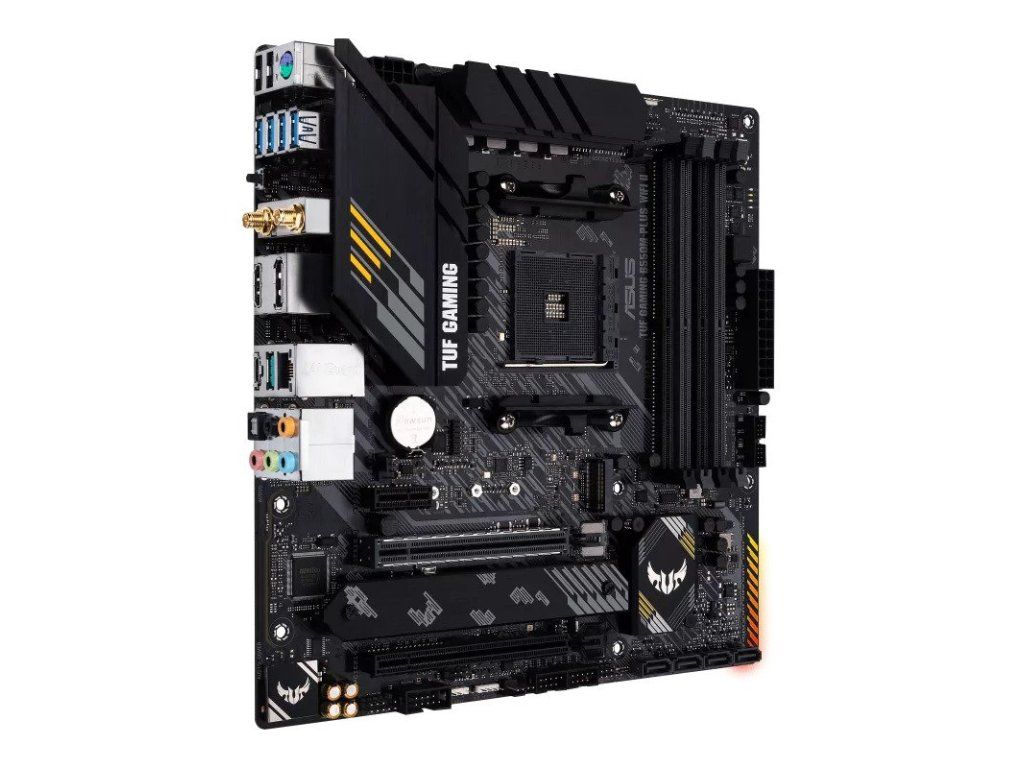

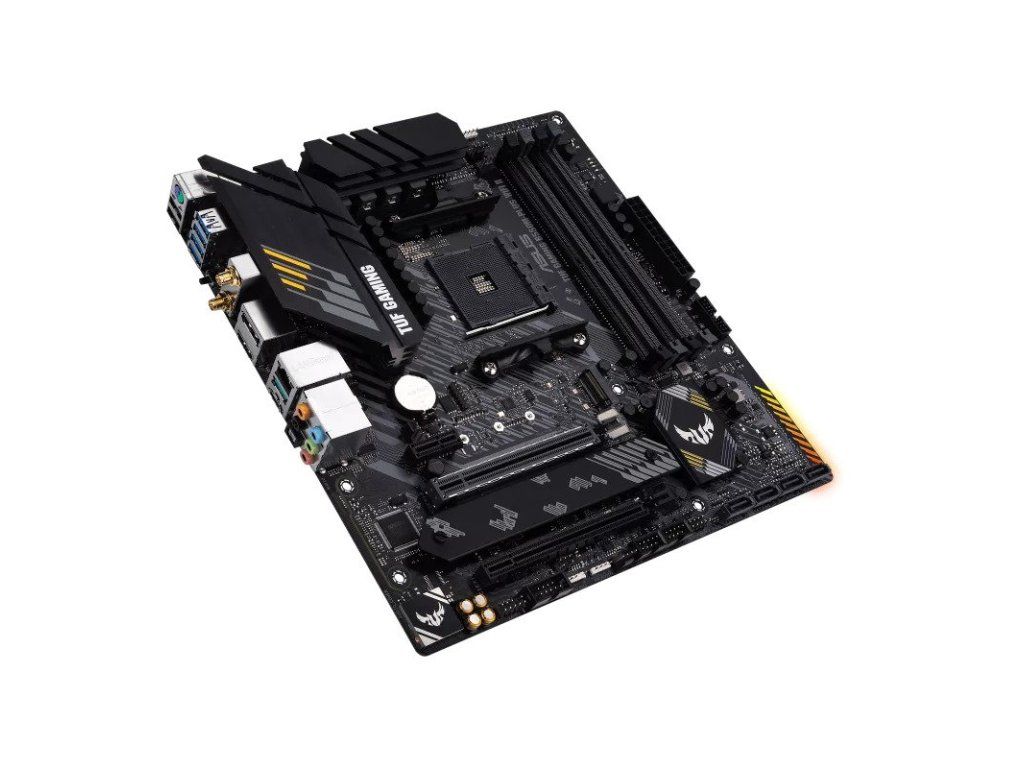

ASUS TUF GAMING B550-PLUS WIFI II/AM4/mATX

Podrobný popis

Chipset: B550
Rozměrový formát: microATX (24.4cm x 24.4cm)
Podpora pro procesory: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Pozice na paměti: 4 x DIMM DDR4, Dual Channel Memory Architecture
Podpora pro paměti: DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: ECC
Grafické výstupy: (na základě procesoru)
* 1 x DisplayPort
* 1 x HDMI port
Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC
Síťová karta:
* TUF LANGuard
* Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
* Bluetooth 5.2
Rozšiřující sloty:
*
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
* 1 x PCIe 4.0 x16 slot (supports x16 mode)
*
AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors
* 1 x PCIe 3.0 x16 slot (supports x16 mode)
*
AMD B550 Chipset
* 1 x PCIe 3.0 x16 slot (supports x4 mode)
* 1 x PCIe 3.0 x1 slot
RAID řadič: RAID 0, 1, 10
SATA: 4 x SATA 6Gb/s ports
M.2: 2 x M.2 slots (Key M)
USB:
*
Interní:
* 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
* 2 x USB 2.0 headers support additional 4 USB 2.0 ports
*
Externí:
* 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
* 4 x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack™)
* 2 x USB 2.0 ports (2 x Type-A)
Interní porty:
*
Fan and Cooling related
* 1 x 4-pin CPU Fan header
* 1 x 4-pin CPU OPT Fan header
* 2 x 4-pin Chassis Fan headers
*
Power related:
* 1 x 24-pin Main Power connector
* 1 x 8-pin +12V Power connector
*
Storage related:
* 2 x M.2 slots (Key M)
* 4 x SATA 6Gb/s ports
*
USB
* 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
* 2 x USB 2.0 headers support additional 4 USB 2.0 ports
*
Miscellaneous:
* 1 x Addressable Gen 2 header
* 2 x AURA RGB headers
* 1 x Clear CMOS header
* 1 x COM Port header
* 1 x Front Panel Audio header (AAFP)
* 1 x Speaker header
* 1 x SPI TPM header (14-1pin)
* 1 x 10-1 pin System Panel header

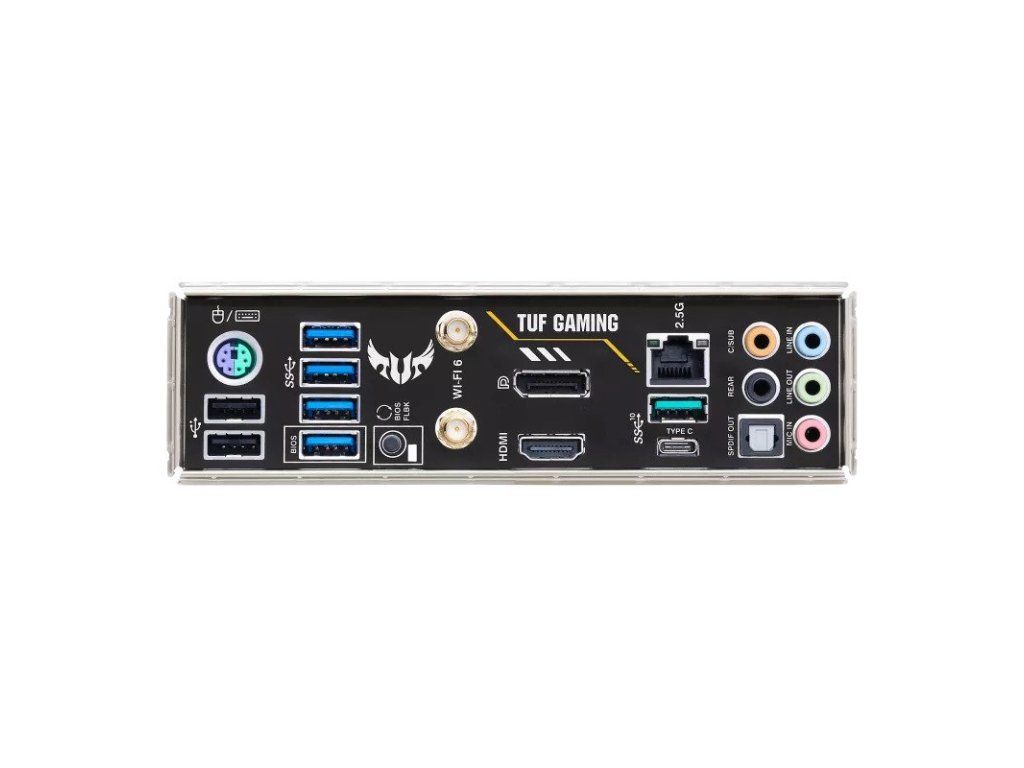

Externí porty:
* 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
* 4 x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack)
* 2 x USB 2.0 ports (2 x Type-A)
* 1 x DisplayPort
* 1 x HDMI port
* 1 x Wi-Fi Module
* 1 x Realtek 2.5Gb Ethernet port
* 5 x Audio jacks
* 1 x Optical S/PDIF out port
* 1 x BIOS FlashBack button
* 1 x PS/2 Keyboard/Mouse combo port
BIOS: UEFI AMI BIOS, 256 Mb Flash ROM
