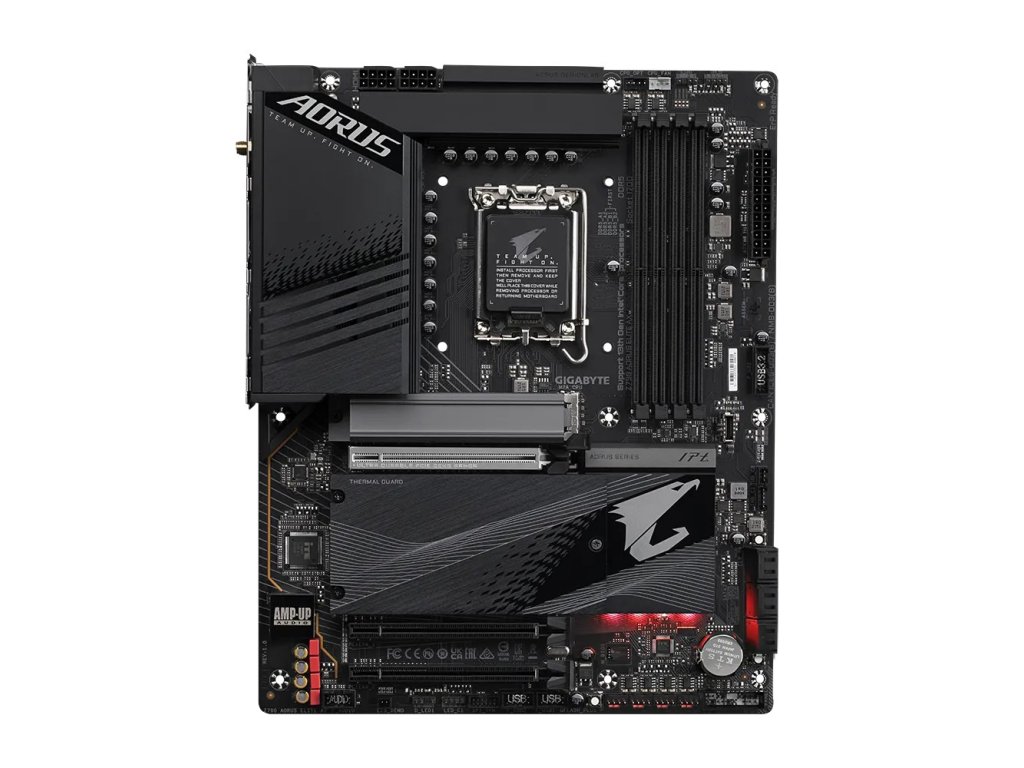

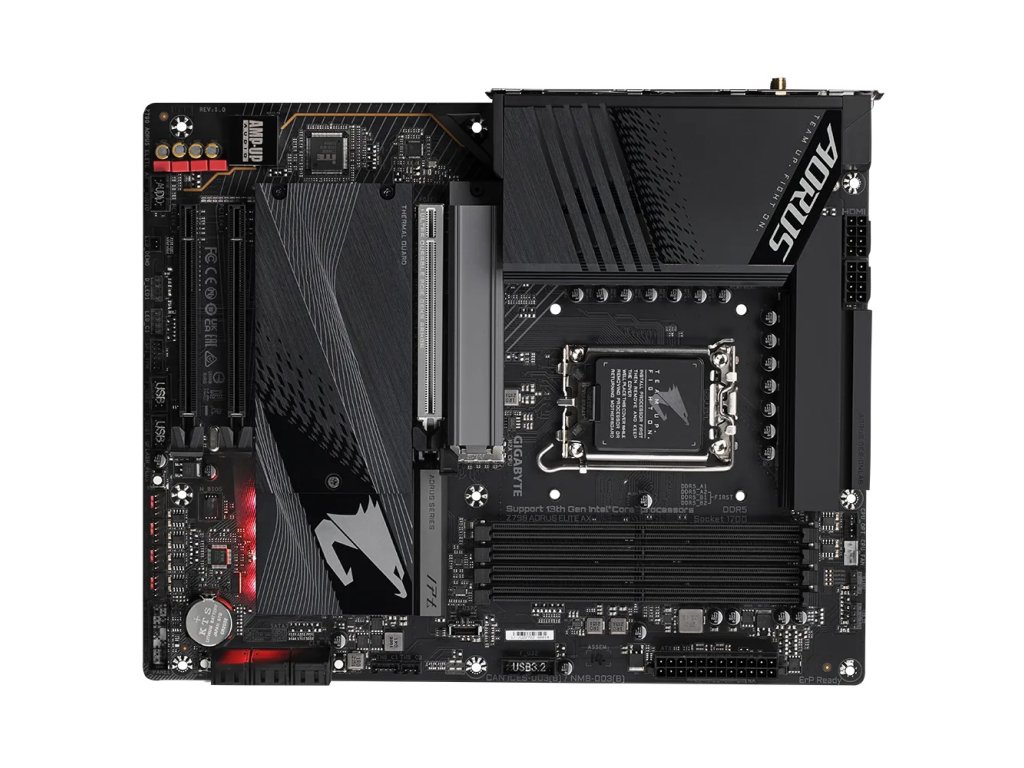

GIGABYTE Z790 AORUS ELITE AX/LGA 1700/ATX

Podrobný popis

Chipset: Intel Z790 Express Chipset
Rozměrový formát: ATX Form Factor, (30.5cm x 24.4cm)
Podpora pro procesory: 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Patice procesoru: LGA 1700
Pozice na paměti: 4 x DDR DIMM sockets, Dual channel memory architecture
Podpora pro paměti: DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity)
Podpora pro paměti typu: ECC, non-ECC, XMP
Grafické výstupy: (Intel HD Graphics)
* 1 x HDMI 2.0 port, maximální rozlišení 4096x2160@60 Hz
* 1 x DisplayPort 1.2, maximální rozlišení 4096x2304@60
Zvuková karta: Realtek Audio CODEC
* 2/4/5.1/7.1-channel
* Podpora S/PDIF Out
Síťová karta:
* Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
* Intel Wi-Fi 6E AX211 a, b, g, n, ac, ax
* Bluetooth 5.3
Rozšiřující sloty:
* 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
RAID řadič: RAID 0, RAID 1, RAID 5, and RAID 10
SATA: 6 x SATA 6Gb/s connectors
M.2: 4 x M.2 Socket 3 connectors
USB:
*
Interní:
* 1 x USB Type-C header, with USB 3.2 Gen 2 support
* 1 x USB 3.2 Gen 1 header
* 2 x USB 2.0/1.1 headers
*
Externí:
* 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
* 2 x USB 3.2 Gen 2 Type-A ports (red)
* 3 x USB 3.2 Gen 1 ports
* 4 x USB 2.0/1.1 ports
Interní porty:
* 1 x 24-pin ATX main power connector
* 2 x 8-pin ATX 12V power connectors
* 1 x CPU fan header
* 1 x water cooling CPU fan header
* 3 x system fan headers
* 1 x system fan/water cooling pump header
* 2 x addressable LED strip headers
* 2 x RGB LED strip headers
* 4 x M.2 Socket 3 connectors
* 6 x SATA 6Gb/s connectors
* 1 x front panel header
* 1 x front panel audio header
* 1 x USB Type-C header, with USB 3.2 Gen 2 support
* 1 x USB 3.2 Gen 1 header
* 2 x USB 2.0/1.1 headers
* 2 x Thunderbolt add-in card connectors
* 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
* 1 x reset button
* 1 x Q-Flash Plus button
* 1 x Clear CMOS button
* 1 x reset jumper
* 1 x Clear CMOS jumper

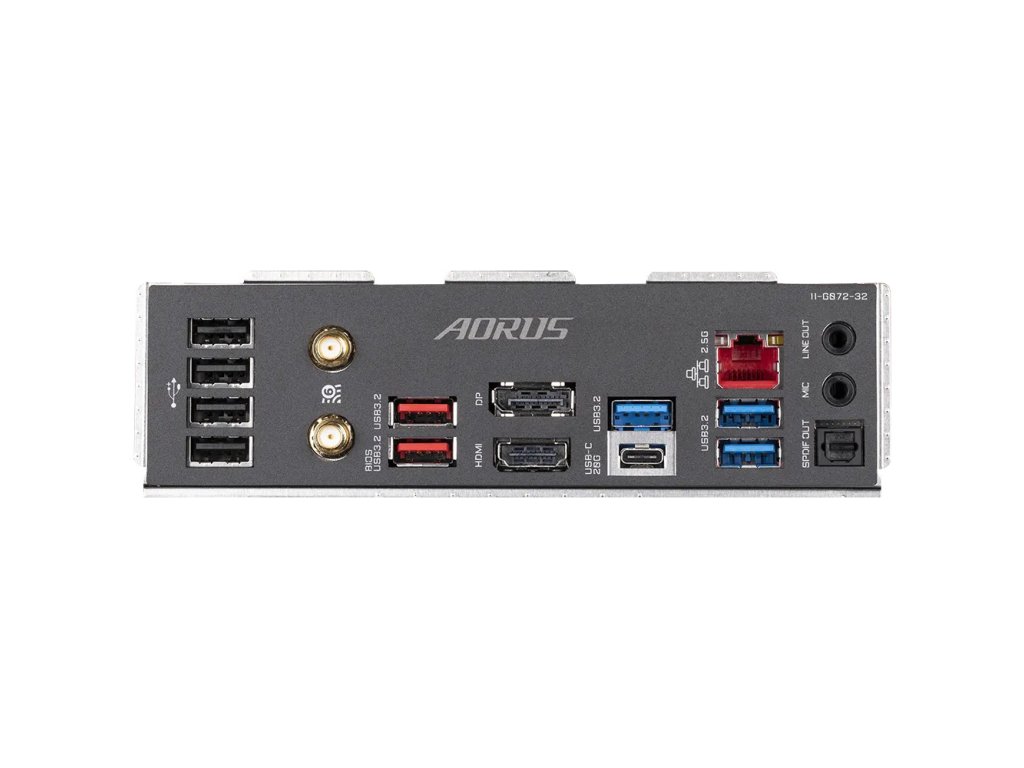

Externí porty:
* 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
* 2 x USB 3.2 Gen 2 Type-A ports (red)
* 3 x USB 3.2 Gen 1 ports
* 4 x USB 2.0/1.1 ports
* 2 x SMA antenna connectors (2T2R)
* 1 x HDMI 2.0 port
* 1 x DisplayPort
* 1 x RJ-45 port
* 1 x optical S/PDIF Out connector
* 2 x audio jacks
BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash
Stránka výrobce: http://www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-AX-rev-10#kf
